8 S M C 1-USBhF - Microstep Driver (USB Interface)
Microstep Driver (USB Interface)
Zoom in
Printable version
View drawings
8CMA9(F)-15(M) wiring diagram
Datasheet (short)
User Manual (2 MB)
Development Kit for Windows Mobile v.1.0.0 (2 MB)
Latest Firmware v.2505 - updated for Windows 8 and 8.1 (0.02 MB)
Описание на русском (коротко)
Link to previous controller version 8SMC1-USBh
Updated June 25 2013:
Full Software & Support Package (165 MB)
Full Software & Support Package for Windows 8 (173 MB)
Development Kit (LabVIEW) (2.6 MB)
Development Kit (C, C++ and other) (0,2 MB)
Software Updates history



8SMC1-USBhF-B2-2MC

8SMC1-USBhF-B2-4

8SMC1-USBhF-B1-1MC

SPECIFICATIONS

Electrical
- Targeted for bipolar, two phase stepper motors with current ratings of 0.25A to 1.5 A. The current limit value is set by the manufacturer
- Power supply voltage ranges from 12V to 36V
- Overcurrent, overvoltage and temperature protection
- Synchronization Input and Output
- Encoder Inputs for stall detection (shared with Synchronization Input)
- Revolutions counter input (shared with Synchronization Input)

USB Expansion
- Each 8SMC1-USBhf controller card comes with an integrated USB hub to allow easy system expansion of additional single- or multi-axis controller cards
- Additional controllers can be connected directly to the computer in use or via any other controller card in the system. In either case the software will appropriately recognize the added controller card(s) and treat all connected controllers as a system
- Two USB expansion ports can be found on each controller card. Note when ordering encased cards that only the single-axis controller has access to the USB expansion outputs on the rear panel of the unit

Motion
- Resolution: full step, 1/2, 1/4, 1/8
- Speed: 2-5000 steps/s
- Programmable speed and trip points
- Programmable acceleration and deceleration ramps
- Soft start/stop mode

Control
- PC control via USB interface
- Optional handheld remote offers manual two button directional control
- Additional features include two programmable limit switches, an emergency limit switch, encoder, and revolution sensor for stall detection and input/output for synchronization

Programming
- Graphical user interface SMCView for Windows 2000/XP/Vista
- Drivers and dynamic link library for Windows 2000/XP/ Vista/Mobile host programming
- Set of virtual instruments for National Instruments LabView

Mechanical
- RoHS compliant
- Operating temperature range: 0 to 70°C
- Box size for 1-axis controller : 90 x 120 x 70 mm (B1)
- Box size for 2 and more axis controller : 180 x 120 x 90 mm (B2)

Manual control on 8SMC1-USBhF series
The 8SMC1-USBhF-B1-1MC offers a handheld manual control option that allows for two button directional control of the unit in addition to the USB communication, the buttons are labeled “Forward” and “Backward”. The “Forward” button is intended for moving the positioner “Forward”. The “Backward” button is intended for moving the positioner “Backward”. Two LED’s indicate direction of movement. The LED of interest will flash to indicate rapid movement and will remain constantly illuminated upon reaching the limit switch. The handheld remote is usually used for precise manual positioning of the stage during such processes as calibration. Another common application of is for the control of stepper motors when a computer is not easily accessible. Front panel manual control is available as an option for the 8SMC1-USBhF-B2-2MC. There are four buttons on this front panel: “Forward Axis1”, “Backward Axis1”, “Forward Axis2” and “Backward Axis2”. There are also four LED indicators to show the direction of movement along with limit switch indication.

Ordering of 8SMC1-USBhF series circuit card assemblies (CCA)

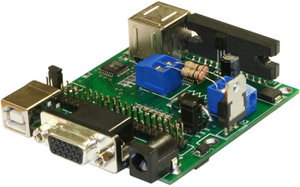

For added flexibility Standa offers the 8SMC1-USBhF series controller in CCA form for ease of integration into custom systems. When ordering the CCA version of the controller the current limit values will still be set by the manufacturer before leaving the factory, but this limit can be changed by the user in the field. The CCA product will also include the USB hub IC and a heatsink for the motor driver IC. Warranty and support options may vary for the CCA version of controller.

Software Options for 8SMC1-USBhF controller

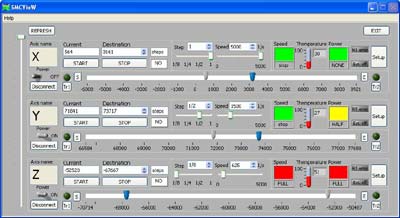

The 8SMC1-USBhF comes with a suite of advanced software tools that can be utilized to control and adjust your stepping motors. All software tools operate on Windows 2000/XP/Vista. SMCView is a friendly, graphical user interface for controlling, monitoring and adjustment of your stepping motors. It can also be used for easy setup to save and load of all parameters for each stepping mo-tor. This interface supports up to 30 drivers simultaneously. USMCDLL.dll is a dynamic link library for host programming in C/C++, Visual Basic and other languages. It includes all basic commands for stepping motor control. Some examples of these functions are also enclosed. SMC.llb is a set of virtual instruments (VI) for National Instruments LabView 7 programming language. Some examples of these VI’s are also included.

Applications of 8SMC1-USBhF
Users can connect to 8SMC1-USBhF various stepper motors using “bipolar, two phase” connection. Standa offers many motorized stages that can be driven by 8SMC1-USBhF: actuators, rotators, translators, variable wheel attenuators. These stages also can be mechanically fixed to various systems: XYZ translators, translators + rotator and others. There are several possibilities to initiate movement actions for mentioned stages connected to 8SMC1- USBhF: by manual push buttons or by software. Using of software allows automated motion actions required for various scientific experiments or for industrial complex multidimensional movement shape execution. The 8SMC1-USBhF comes with a suite of advanced software tools that can be utilized to control and adjust your stepping motors. All software tools operate on Windows 2000/XP/Vista/7:

- USMCDLL.dll is a dynamic link library for host programming in C/C++ and other languages. It includes all basic commands for stepping motor control. Some examples of these functions are also enclosed.

- USMCDLL.dll for Microsoft Windows Mobile 5.0 (which have just the same functionality as USMCDLL.dll for Microsoft Windows XP).

- SMCVieW is a friendly graphical user interface for control, monitoring and tuning your stepping motors. It can also be used for easy setup and save/load of all parameters for each stepping motor. Interface supports up to 30 drivers simultaneously.

- Cyclic Motion program - allows motion “from limit switch to limit switch” or “from point to point”. Included in SMCview inside “Extras” menu.

- 2D Motion - allows driving two 8SMC1-USBhF controllers connected in schematic “XY translator”. Included in SMCview inside “Extras” menu, may require separate license.

- ENGRAVING add-on - allows driving three 8SMC1-USBhF controllers connected in schematic “XYZ translator + laser beam shutter”. Included in SMCview inside “Extras” menu, may require separate license.

- 3D Motion - allows driving three 8SMC1-USBhF controllers connected in schematic “XYZ translator”. Included in SMCview inside “Extras” menu, may require separate license.

- ATTENUATOR program – this separate program allows driving Standa Motorized Variable Wheel Attenuator (10MWA168, 10MCWA168). By default shipping only with Standa motorized attenuator. May require separate license.


A power supply (12V – 36V, 1.5A – 3.6 A) with KPPX-4P male power connector is required to operate the controller. You can use your own power supply or purchase STANDA power supplies.

IMPORTANT INFORMATION

Warning: The Power driver IC fin (rear) is electrically connected to the rear of the chip. When current flows to the fin, the Power driver IC malfunctions. If there is any possibility of a voltage being generated between the ground of the 8SMC1-USBhF and the fin, either ground the fin or insulate it.

Warning: There are appreciable power dissipation on Power driver (up to 6 W depending on input voltage and rated current of stepper motor). Appropriate heatsink must be used to maintain temperature range. Heating the Power driver over 85 °C is forbidden!

Warning: Current sense resistors must be chosen for every stepper motor according to its rated current and connection diagram. For more details see 4.2.1. of User Manual. Wrong current sense resistors can cause the malfunction of 8SMC1-USBhF or damage stepper motor.

Warning: There is some power dissipation on Voltage regulator (up to 0.5 W depending on input voltage). Appropriate heatsink may be required. Heating the Voltage regulator over 85 °C is forbidden!

Warning: 8SMC1-USBhF power supply must never exceed 36 V. Power driver can be damaged if such exceeding happened.

Warning: If a single power supply mode is used, make sure that input voltage is not exceeding 12 V. Otherwise the overheating of the Voltage regulator may happen. Heating the Voltage regulator over 85 °C is forbidden!

Warning: Make sure that there are no contact between stepping motor phase windings and 8SMC1- USBhF ground. Power driver will be damaged obligatory if such grounding present.

Warning: You must never connect to, or disconnect from the 8SMC1-USBhF any stepping motors while the controller keeps currents in the motor windings. Power driver can be damaged if such reconnection happened.

Models ending with -1BR have 1 port designed for operating motor with a brake. This port is also compatible with motors without brake.
Currently available stages that employ motor with brake are: 8MT195Z, 8MT295Z, 8MT50Z series

Attention! Model 8SMC1-USBhF has been upgraded to a motor controller of new generation: firstly to 8SMC4 series and later to actual controller version 8SMC5, 8SMC5B series.
8SMC1-USBhF was in stock for a transition period in quantities necessary for our long-term customers - system integrators.
We were supporting of 8SMC1-USBhF until 2016. Latest software package could be downloaded from this page.



Ordering Information
Model Information
8CA9F- 15M Cable from computer to Standa actuator - standard length is 1.5 m, other lengths by request
8MC05 Remote wired control panel
8SMC1-USBhF Controller Card Assembly (CCA)
8SMC1-USBhF-B1-1 1 Axis Controller
8SMC1-USBhF-B1-1-1BR 1 Axis controller for brake equipped motor
8SMC1-USBhF-B1-1MC 1 axis Controller with external wired remote control
8SMC1-USBhF-B2-2 2 Axis Controller
8SMC1-USBhF-B2-2-1BR 2 Axis controller (1 port for brake equipped motor)
8SMC1-USBhF-B2-2MC 2 axis controller with knobs on box front panel for manual control
8SMC1-USBhF-B2-3 3 Axis Controller
8SMC1-USBhF-B2-3-1BR 3 Axis controller (1 port for brake equipped motor)
8SMC1-USBhF-B2-4 4 Axis Controller
USB Cable Cable to Computer
