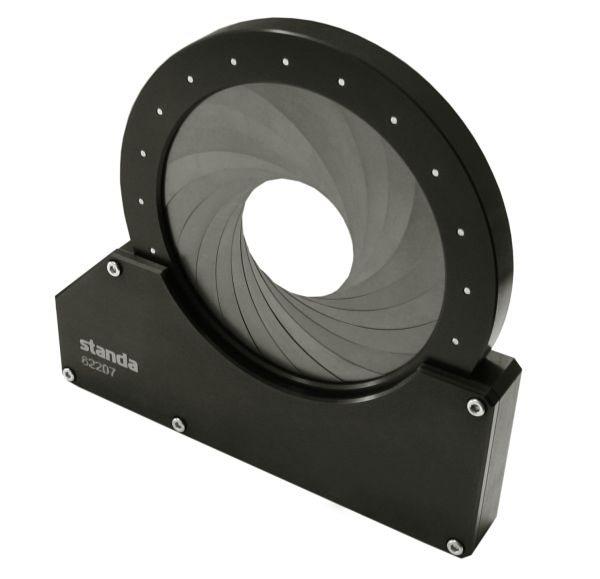

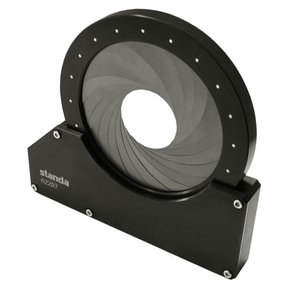

8MID98-4-90 - Motorized Iris Diaphragm


		Zoom in

		Printable version

		View drawings

		Download 3D


		Smooth operation
		Swift operation
		Continuously adjustable light attenuator
		Compact
		Control via PC or manual controller
		Adjustable inserts

Motorized Iris Diaphragm 8MID98-4-90 is designed around iris diaphragm 10IBS130-98-4-N/H. It is a customer inspired design and is manufactured on request. As an upgrade to 8MID98-4-90 we developed model 8MID70-130 which is available from stock and can accept various iris diaphragm sizes as listed on its webpage.

For driving motorized iris diaphragms we recommend using Standa stepper motor controllers. Controllers of other manufacturers can also be used.

Similar products

Manual irises

Ø30..50 mm motorized irises

Ø60..98 mm motorized irises

* Min aperture may vary due to tolerance stack up

Specifications

Operation range*		Ø5 - 98 mm



Stepper motor/gear		90:1



Resolution, steps per mm		570



Closing speed (min to max)		11 sec



Stepper motor		28



Iris Diaphragm used		10IBS130-98-4-N/H



Limit switch		2, mechanical



	Switch polarity	pushed is closed



Recommended



	controller	8SMC5-USB



	power supply	PS24-2.5-4

Ordering Information

Model

Operating range

8MID98-4-90

Ø5 - 98 mm

Vacuum compatible motorized iris diaphragms are also available. There is a short video below giving an idea on their appearance and operation.
