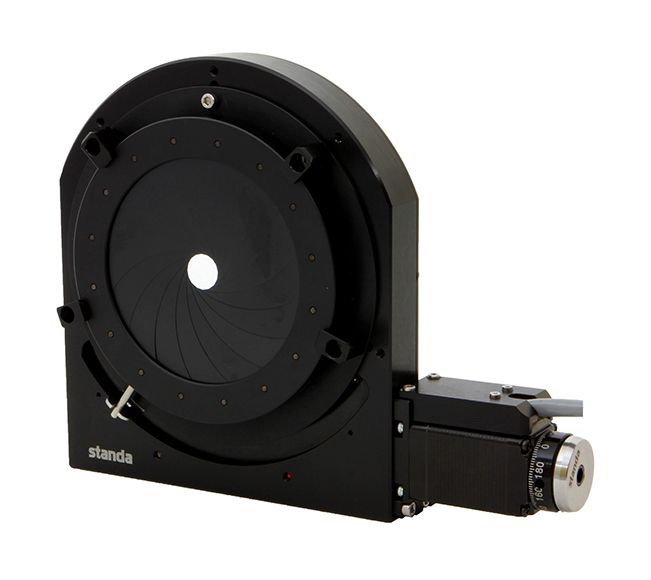

8MID70-130 - Motorized Iris Diaphragm
Motorized Iris Diaphragm
Zoom in
Printable version
View drawings
Download 3D

8MID70-130 Motorized Iris Diaphragm Mount was developed due to interest in our previously presented motorized iris 8MID98-4. Motorized Iris Diaphragm is designed for our small medium family, more information about fitted iris diaphragms can be found on this page. Unfortunately it is impossible to interchange iris diaphragms at home since every diaphragm has its own adapter ring and requires calibration.

Temperature limits:
AR - leaves with AR coating, for temperatures up to 180 °C
N - springsteel, black finished, for temperatures up to 250 °C
H - stainless steel, for temperatures up to 400 °C

Similar products

Manual Iris Diaphragms

Ø5..27 mm Motorized Irises

Ø30..50 mm Motorized Irises

Closing speed (min to max) 3 seconds
Stepper motor/gear 195:1
Limit switch 2 mechanical
Switch polarity pushed is closed
Recommended controllers 8SMC5-USB
Recommended power supply PS24-2.5-4

* Min aperture may vary due to tolerance stack up

Ordering Information
Model Diaphragm Used Max.
steps per mm
8MID60-4-H 10IBS82-60-4-H 60 4 178
8MID60-4-N 10IBS82-60-4-N 60 4 178
8MID75-4-H 10IBS100-75-4-H 75 4 143
8MID75-4-N 10IBS100-75-4-N 75 4 143
8MID81-3-AR 10IBS110-81-3-AR 81 3 132
8MID90-3.5-AR 10IBS120-90-3.5-AR 90 3.5 122
8MID98-4-H 10IBS130-98-4-H 98 4 112
8MID98-4-N 10IBS130-98-4-N 98 4 112
Vacuum compatible motorized iris diaphragms are also available. There is a short video below giving an idea on their appearance and operation.
