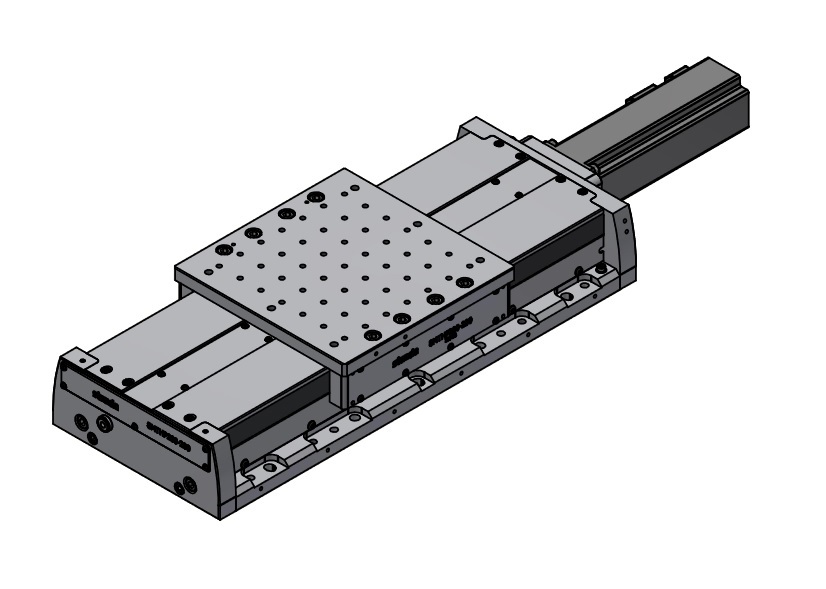

| Model |
8MTHP200-200-B60 |
8MTHP200-300-B60 |
| Kinematics & Feedback information |
| Travel Range, mm |
200 |
300 |
| Encoder Type |
Optical |
| Encoder Model |
- |
| Encoder Resolution 1), PPR/CPR |
3000/12000 |
| Encoder Interface |
Differential RS422 |
| Multiplication factor |
N/A |
| Encoder Grating Period, µdeg |
- |
| Reference Mark (Index) |
Yes |
| Absolute Accuracy 2) |
| Before Calibration, µm |
±5 |
| After Calibration, µm |
<±2 |
| Uni-Directional Repeatability, µm |
N/A |
| Bi-Directional Repeatability (peak to peak) 2), µm |
Better than ±1 |
| Bi-Directional Repeatability (RMS) 2), µm |
±0.55 |
| Pitch 3), µrad / arcsec |
±130 / ±27 |
| Yaw 3), µrad / arcsec |
±30 / ±6 |
| Roll, µrad / arcsec |
N/A |
| Maximum Velocity (no load) 4), mm/s |
<150 |
| Maximum Acceleration (no load) 5), mm/s2 |
Please contact Standa for duty cycle |
| Limits Switches Type (Safety) |
Optical (Optrons) |
| Limit Switch Polarity (Safety) |
Pushed is closed |
| Limit Switch Voltage, V |
5…24 |
| Load, Guiding & Transmission Information |
| Design Type |
Ball Screw Linear Stage (Pitch: 2.5mm) |
| Linear Motor Model |
B60 |
| Linear Motor Design Type |
Internal Rotor BLDC motor (3 phase) |
| Maximum Bus Voltage, VDC |
>220 |
| Load Capacity (Centrally Placed) 6), kg |
| Horizontal, kg |
70 |
| Vertical, kg |
40 |
| Moving Mass 7), kg |
6.2 |
| Guiding System |
Recirculating linear rails and carriages units |
| Material & Environment Conditions |
| Housing Material |
Aluminum Alloy |
| Housing Coating (Finish) |
Black Anodizing |
| Environment Pressure |
Normal Atmosphere |
| Operating Temperature, °C |
20±10 |
| Control, Communication and Cabling |
| Recommended Controllers 8) |
ACS Products Line or 8SMC5-USB series |
| Recommended Drivers 8) |
ACS Products Line or 8SMC5-USB series |
| Recommended Power Supply 9) |
Request Standa support |
| Recommended Communication Interface 12) |
EtherCAT/RS232/USB/TCP-IPT |
| Cable Length, m |
2 (other by request) |
| Differential Outputs 10) |
On request |
| Additional Details |
| Dimensions of Moving Platform (W x L), mm |
206 x 206 |
| Stage Dimensions (L x W x H), mm |
744.5 x 253 x 90 |
809 x 253 x 90 |
| Measurement System |
Metric |
| Orthogonality 11), µrad / arcsec |
24 / 5 |
| Protection Level 13) |
From solid particles and spray |
| RoHS |
Compliant |
| Weight, kg |
20.1 |
22.6 |
