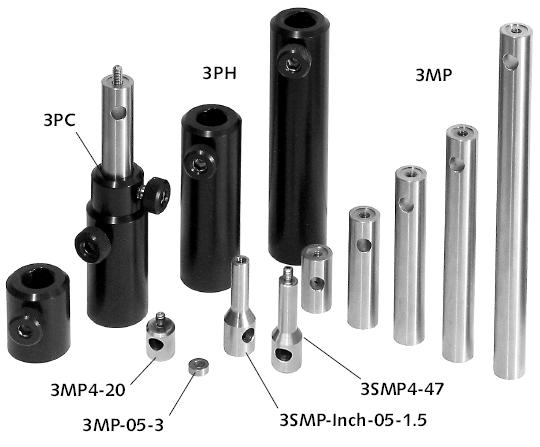

3MP, 3SMP - Mounting Posts
Mounting Posts
Zoom in
Printable version
View drawings
Download 3D
Ø12 mm Mounting Optical Posts made of stainless steel
Components can be mounted using screws or 3AH adapters for different threads
Each post can be attached directly to a base surface using adapters 3AH
Posts are supplied with 3AH4-4 or 3AH6-4
M6 and M4 threaded holes in the ends
Each post has a Ø6.2 mm hole
Post Holders 3PH
Post Collars 3PC

Stainless steel Mounting Posts have M4 (8-32 in imperial) and M6 (1/4-20 in imperial) holes on the ends. Components can be mounted using screws or 3AH adapters for different threads. Each post can be attached directly to a base surface using adapters 3AH. Mounting Posts could be used together with post holders 3PH. 3MP4-20 and 3SMP4-47 posts have an external M4 end. Take mirror mount 5OM111 as an example. Adjustable angle post clamps 3APC can be used to couple the posts at varying angles. Each post has a Ø6.2 hole. You use any wrench on this hole to tighten the post in a stable manner. A hex key 3HK-5 is quite suitable as wrench.

Special Mounting Post 3SMP4-47 is designed for little optical mounts, which have no space for the Ø12 mm rod.

3MP-05-3 Riser post is designed for small units.

3AH adapters used with mounting posts

Use of 3SMP4-47 narrow posts

Ordering Information
Model Height,
Price Availability
3MP-25+3AH4-4 25 0.02 3AH4-4 € 5.50 today
3MP-25+3AH6-4 25 0.02 3AH6-4 € 5.50 today
3MP-50+3AH4-4 50 0.04 3AH4-4 € 6.10 today
3MP-50+3AH6-4 50 0.04 3AH6-4 € 6.10 today
3MP-75+3AH4-4 75 0.06 3AH4-4 € 6.40 today
3MP-75+3AH6-4 75 0.06 3AH6-4 € 6.40 today
3MP-100+3AH4-4 100 0.085 3AH4-4 € 7.00 today
3MP-100+3AH6-4 100 0.085 3AH6-4 € 7.00 today
3MP-150+3AH4-4 150 0.125 3AH4-4 € 8.10 today
3MP-150+3AH6-4 150 0.125 3AH6-4 € 8.10 today
3MP-200+3AH4-4 200 0.160 3AH4-4 € 10.90 today
3MP-200+3AH6-4 200 0.160 3AH6-4 € 10.90 today
3MP4-20 20 0.01 - € 6.60 today
3SMP4-47 47 0.02 - € 11.00 today
