5OM111 - Mirror / Optics Mount
Mirror / Optics Mount
Zoom in
Printable version
View drawings
Download 3D
10 arcsec sensitivity

High degree of versatility

Miniature mounts for small optics

Is made of black anodized aluminium

±10° tilt adjustments about two orthogonal axes

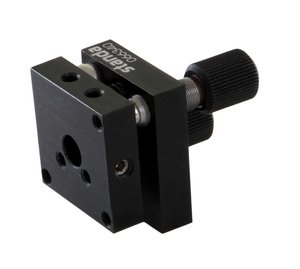

Miniature Precision Mirror Mounts ensure precise angular adjustments of small optics about two orthogonal axes with 10 arcsec sensitivity. For mounting the M4 and M6 taped holes are provided. These black anodized aluminium mounts are ideal for holding of 25 mm and smaller optic in tight spaces.

Mirror / Optics Mount 5OM111 provides smooth and precise adjustment with sensitivity of 10 arcsec.


It can be used as a tilt platform – with the Spring Clamp 4SC-28M4 and Mounting Post 3SMP4-47. Platform of the mount has a clear aperture of 6.2 mm in diameter. The mount has holes of M6x0.35 mm pitch on its base for adjustment screws. Alternatively, to order the mount with wrench driven screws, you append the code of that screw: 5OM111-9S127H.

5OM111-0 5OM111-45 5OM111-9S127H

Mirror / Optics Mount 5OM111 with adapters 5OM111-A0 and 5OM111-A45 are suitable for round (Ø24) and square optical elements.

For coarse adjustments about horizontal axis compact mirror mounts can be used with Mini Angle Brackets 2MAB111. To mount Mounting Posts 3MP4, 3SMP4 or Universal Riser Blocks can be used.

Connecting cone facilitates adjustment of the adapter to the required position. The cut-off side clears the edge of the optics for working with a beam that is very closely situated to another beam. Optics is firmly held in place by a Teflon set screw and rests against the two contact lines formed at the cut-off side. (See also adapters in articles 5OM122T)

Examples of codes:
- 5OM111-0: Mount 5OM111 with adapter 5OM111A0
- 5OM111-9S127H-0: Mount 5OM111 with 9S127H screws and with adapter 5OM111A0.




Specifications
Mechanismkinematic
Drive typeknob
AdjustmentsΘx, Θy
Special featuresplatform mount
Angular range±10°
Sensitivity10 arcsec
Mounting threadM4 (2 holes)
Fine screw threadM6x35
Ordering Information
Model Weight, kg Price Availability
5OM111 0.045 € 43.00 today
5OM111-0 - € 54.00 today
5OM111-45 - € 65.00 today
5OM111-9S127H - € 54.00 today
5OM111-9S127H-0 - € 65.00 today
5OM111-9S127H-45 - € 76.00 today
