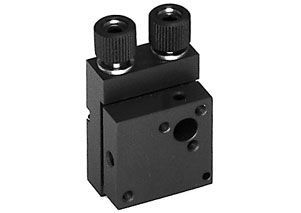

5OM10T - Small Optical Mount of Side Drive
Small Optical Mount of Side Drive
Zoom in
Printable version
View drawings
Download 3D
Single side drive
Tilt/tip ±5° about two orthogonal axes
Fine adjustment screws with 0.25mm pitch
Hardened seats under driving screws
Sensitivity 10 arcsec
Fine screw thread M6x0.25
Large assortment of additional adapters
Material: black anodized aluminium

Small Optical Mount of Side Drive 5OM10T is designed to hold optics in schemes of high density. Adapters are available for round and rectangular lenses, mirrors and beamsplitters or polarizing cubes (see below). The unit mounts on one M4 hole in its base. Special Base Mounts (see below) and standard ones are available in order to mount the unit in various orientations. A platform has four M3 holes on its face for mounting of optics, and three M4 holes on the sides for adapters. Adapters with connecting cones match the Ø6.2mm hole, where the fixing screw clutches a cone. A platform is preloaded against a base by coil springs. The mount is held together and stabilized by a flat spring.

Note: 5OM10T replaces the older mount 5OM100T. The pictures on this and on the next page show how to combine bases and adapters with the old mount 5OM100T. These adapters combine in the same manner with the new mount 5OM10T.

Small Optical Mount of Side Drive5OM100B1 allows mounting with extremely low profile.

Small Optical Mount of Side Drive5OM100B2 attaches to 5OM10T both immediately and through the intermediate accessories.

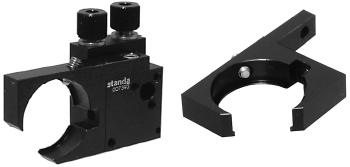

5OM100A1 may be attached to the platform of 5OM10T mount on any side. Optics is firmly held by a stainless steel fixing screw, and it resists against two contact lines - the edges of the cut-off corner. The frame doesn't obstruct the view. It allows working with two beams going very close to each other.

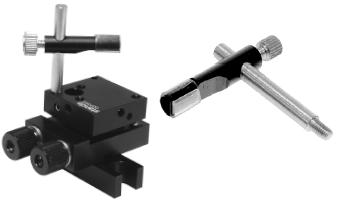

5OM100A2 Ideal if the mount is used as a tilt platform. It has a fixing screw, and a plastic clutching pad. Allows clutching of optical elements up to 1". The rod has a mounting thread M3. So the clamp combines with any units, which has M3 holes.

5OM100A3 connecting cone facilitates adjustment of the adapter to the required position. The cut-off side clears the edge of the optics for working with a beam very closely situated to another beam. A fixing screw of stainless steel clutches optics firmly against two contact lines formed at the cut-off side.

5OM100A4 connecting cone allows to adjust the adapter to the required angle by hand. The adapter allows working with two beams going close to each other. Stainless steel fixing screw clutches optics firmly. There are two models: 5OM100A4-13 and 5OM100A4-16 (apertures 13 and 16 mm).

5OM100A5 allows turning optics to a convenient position.

Related products
Prisms Dielectric Coated Optics Metallic Coated Optics

Ordering Information
Model Price Availability
5OM10T € 98.00 today
5OM100A1 € 24.00 today
5OM100A2 € 11.00 today
5OM100A3 € 11.00 today
5OM100A4-13 € 24.00 today
5OM100A4-16 € 29.00 today
5OM100A5 € 11.00 today
5OM100B1 € 19.00 today
5OM100B2 € 8.00 today
