5PM57 - Prism Mount
Prism Mount
Zoom in
Printable version
View drawings
Download 3D

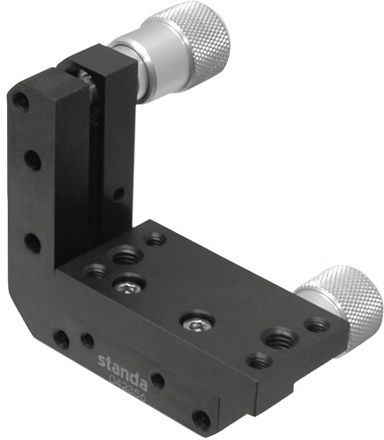

Prism Mount
Special flat spring for improved stability versatility and durability

Kinematics, orthogonal angular adjustments

Vertical and horizontal mounting

9° range, 5 arcsec sensitivity

Left or right hand mountable

Universal Prism/Optics Mount...

Prism optics mounts a platform and allows to hold wider optics.

Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are produced of steel with black chemical finishing. Special figure spring clamps 4BC32, 4VC41 and 4SC used in Prism Mounts for two purposes:

- It provides pre-loading against the tips of two precise driving screws for elimination of backlash.

- It ensures the absence of the roll coordinate.

The Highly Stable Precision L-shaped Optical Prism Mount has two M10x1 threaded mounting holes for mounting of the actuators. This allows using all STANDA driving screws with these mounts. M6 tapped holes on the sides provide a wide variety of mounting configurations, either horizontal or vertical. A special L-shaped design of the Mounts provides for maximum clear aperture.
Prism Mount 5PM57 with bar clamp 4VC41 Universal Prism / Optics Mount 5PMF57 with spring clamp 4SC-52M4

Universal Prism / Optics Mount 5PMF57 with bar clamp 4BC32

Related products
Prisms Beam Displacers Non Polarizing Beamsplitter Cubes

Fine screw mounting threadM10x1
Travel range
Sensitivity5 arcsec
Weight0.29 kg
Ordering Information
Model Price
5PM57 € 109.00
