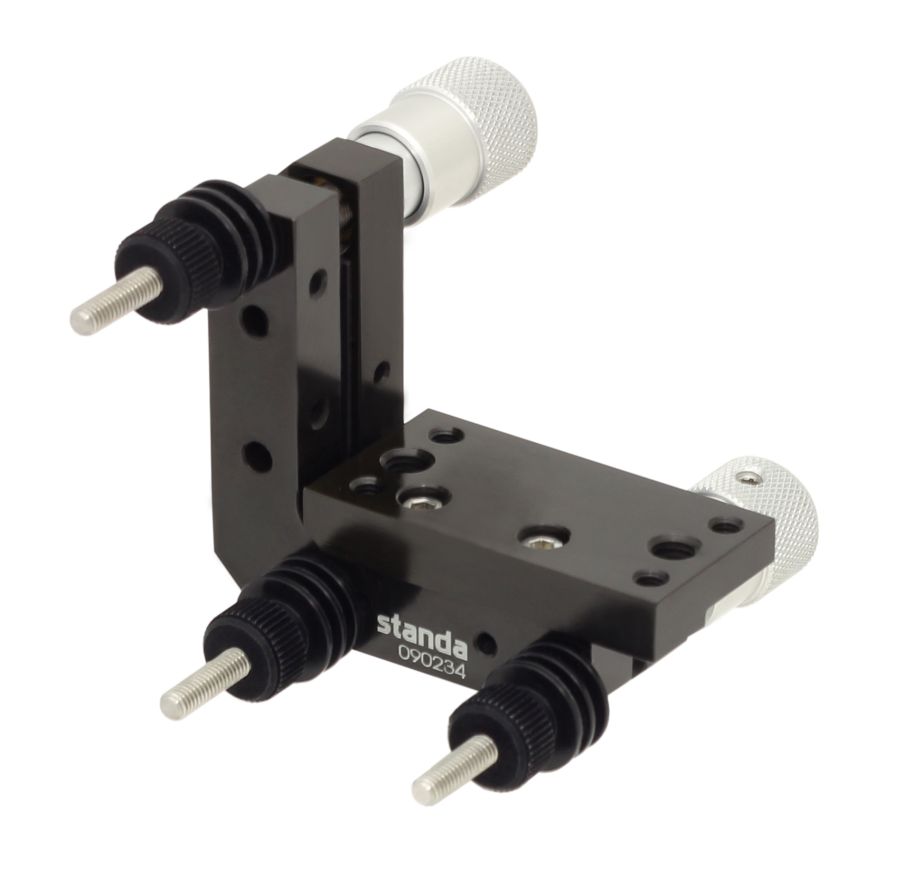

5PMF57 - Universal Prism / Optics Mount
Universal Prism / Optics Mount
Zoom in
Printable version
View drawings
Special flat spring for improved stability versatility and durability

Multi-component optical elements mount-holder

Kinematics, orthogonal angular adjustments

Vertical and horizontal mounting

9° range, 5 arcsec sensitivity

Left or right hand mountable

Prism Mount without filters holder

Universal Prism / Optics Mount (multi-component optical elements mount-holder) has a combination of a platform for wider optics together with filters holder.

Highly Stable Precision L-shaped Optical Mounts are designed on the basis of two angular adjustment mounts, and are produced of steel with black chemical finishing. Special figure spring is used in these Mounts for two purposes:

- It provides pre-loading against the tips of two precise driving screws for elimination of backlash.

- It ensures the absence of the roll coordinate.

The Highly Stable Precision L-shaped Optical Mounts have two M10x1 threaded mounting holes for mounting of the actuators. This allows using all STANDA driving screws with these mounts. M6 tapped holes on the sides provide a wide variety of mounting configurations, either horizontal or vertical. A special L-shaped design of the Mounts provides for maximum clear aperture.
Universal Prism / Optics Mount Universal Prism / Optics Mount Universal Prism / Optics Mount
Prism Mount 5PM57 with bar clamp 4VC41 Universal Prism / Optics Mount 5PMF57 with spring clamp 4SC-52M4

Universal Prism / Optics Mount 5PMF57 with bar clamp 4BC32

Related products
Prisms Filters Non Polarizing Beamsplitter Cubes

Fine screw mounting threadM10x1
Travel range
Sensitivity5 arcsec
Weight0.31 kg
Ordering Information
Model Price
5PMF57 € 120.00
