5AM - Self-centering Large Aperture Optical Mount

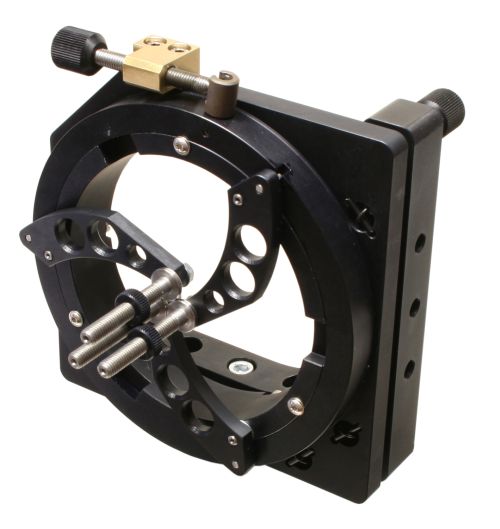

Self-centering Large Aperture Optical Mount
Zoom in
Printable version
View drawings
Download 3D
Tilt possibility
Linear adjustment of X axis is possible on request
More linear axes are possible on request
Great variety of optics diameters which could be used with this mount
Related product 4SCML-8 Self-Centering Optics Mount

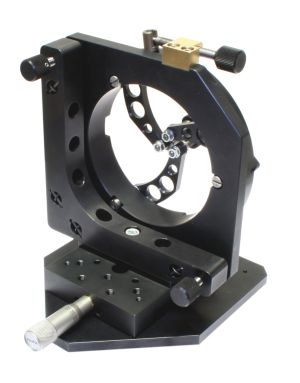

Self-centering Large Aperture Optical Mount 5BAM-1

You can order a set of elements with single code 5BAM-1 which includes:
5AM-100
Translation stage 7T67-25
Base Plate 3BP5BAM


Related products

Lenses Dielectric Coated Optics Metallic Coated Optics


Specifications
Fine screw threadM6x0.25
Optics diameter range
5AM-1005-100 mm
5AM-1505-150 mm
XY tilt/tip range± 2°
X axis translation ragne (5BAM-1)25 mm
Ordering Information
Model Weight Price Availability
5AM-100 1.1 kg € 418.00 today
5AM-150 1.9 kg € 550.00 today
5BAM-1 € 690.00 today
