7T67-25 - Stable Steel Translation Stage
Stable Steel Translation Stage
Zoom in
Printable version
View drawings
Download 3D
Solid box design
25 mm travel range
Variety of mounting holes and options
Easily stacked in X-Y configuration
For Z axis add 2AB67-25
Large Mounting surface
Made of steel
Similar design Translation Stage made of aluminium
Vacuum version

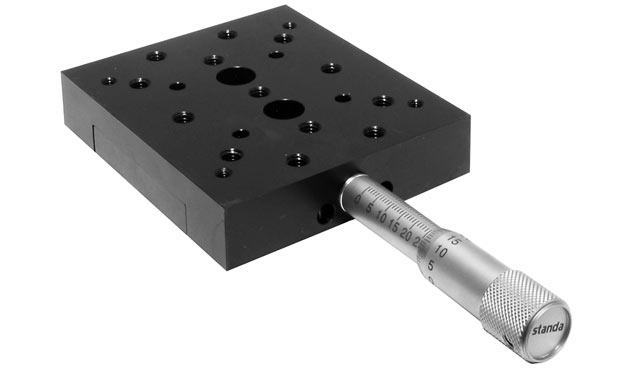

Stable Steel Translation Stage 7T67-25Stable Steel Translation Stages 7T67-25 have large mounting surface, great travel range for this relatively small size, low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. Steel, as a material, adds to stability. You Can mount a second driving screw on the other end (to lock the platform in fixed positioning applications). The platform is preloaded by springs. The stage can be stacked immediately to other units or to their own type (e.g. in X-Y configuration). The stage could be used upside-down. For immediate attachment the base has 2 clearance holes for M6 screws. Similarly, the platform has clearance holes for M4 screws. Slip the screws from top or under through the across holes in a platform/base. Micrometers 9S75M-25 comes as standard. The stage has black anodized finish.

7T67SS-25 Stainless Steel Translation Stage top and bottom view. Modified version of this stage 7T67SSV-25 could be used in vacuum (please define vacuum conditions in your inquiry).



Specifications
Travel range25 mm
Sensitivity1 µm
Reading accuracy10 µm
Angular deviation<200 µRad
Tracking accuracy 2 µm
Load capacity:
Horizontal20 kg
Vertical5 kg
Assemblies:
X-Ydirectly
Z2AB67-25
Ordering Information
Model Weight, kg Price Availability
7T67-25 0.78 € 393.00 today
7T67-25XY 1.7 € 786.00 today
7T67-25XYZ 2.58 € 1218.00 2-3 days
7T67SS-25 0.8 € 482.00 today
7T67SS-25XY 1.6 € 964.00 today
7T67SS-25XYZ 2.6 € 1482.00 2-3 days
- ...SS - models are made of stainless steel
