1TS-140W - Active Vibration Isolation Workstation
Active Vibration Isolation Workstation
Zoom in
Printable version
View drawings
Active Vibration Isolation Workstation
Scanning probe microscopy
Scanning electron microscopy
Scanning near-field optical microscopy / NSOM
Control laser microscopy
Metrology / Profilometry
Nano indentation
Nano lithography
Ultrathin film applications
Analytical balances
Bio - physical measurement
* Single molecule investigations
* Cell micro infection
* Cell manipulation
* Patch clamp
* IVF techniques

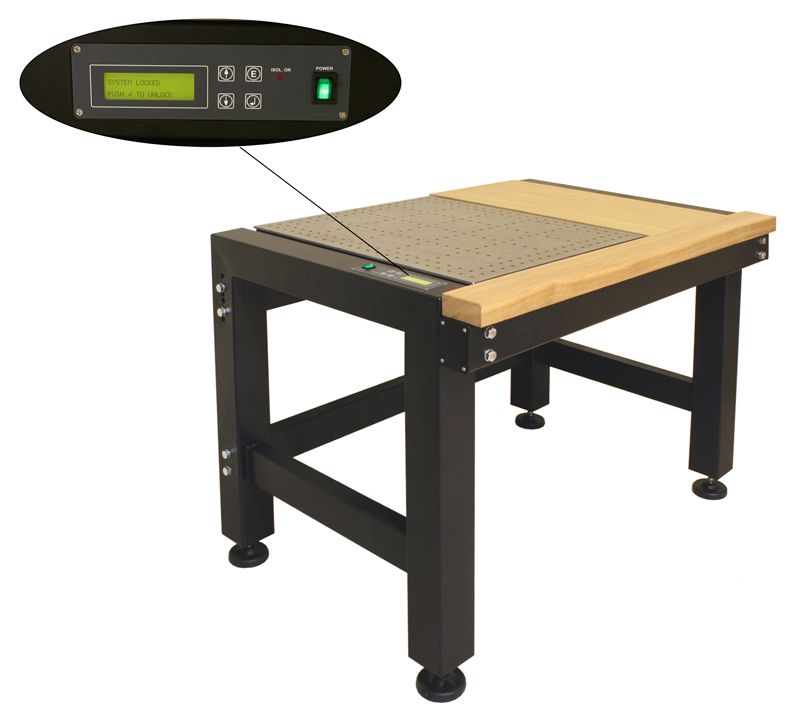

Active vibration isolation workstation comprises of ergonomic rigid frame, guarding armrest and supplied with three modifications of active vibration isolation system:

The control panel is built into the frame and allows comfortable work. This system is extremely convenient to use. Load compensation is performed automatically on switching on the power. If the load is changed whilst the system is isolating, it automatically readjusts and then returns to the isolation mode. The workstation is design is optimized for such delicate instruments as AFM’s, Laser Scanning Microscopes, SNOM’s, profilometers, nanoindenters, etc.

Upon request we can make custom workstations with working surfaces 400 x 450 mm (maximum load 150 kg) and 600 x 800 mm (maximum load 120 kg). For larger surfaces please see active vibration isolation system 1TS-AVI200S/LP.

Transmissibility curve

Isolationdynamic 0.7 Hz to 200 Hz, mainly passive at
higher frequencies, although for good stability
the feedback is active to at least 2 KHz
TransmissibilitySee curve. Above 10 Hz
transmissibility <0.01 (-40dB)
Maximum load140 kg
Working surface500x600 mm
Self - weight23 kg
Safety class1
Power consumptionmaximum 10 W when isolating,
maximum 20W during load adjustment
Input voltage 90 – 120V AC, 47 – 63 Hz /
200 – 240V AC, 47 – 63 Hz
Fuses2x1.6A/250V slow, located in the
power socket on the rear side of the unit
Normal Environmental
Protection classIP 20
Temperature range5°C - 40°C
Relative Humidity10 - 90% (5 - 30°C) /
10 - 60% (30 - 40°C)
AltitudeUp to 2000 m (6.500 ft)
Ordering Information
Model Ordering Information
1TS-140W with active system
1TS-140WB-AL with active system
1TS140WB with active system
