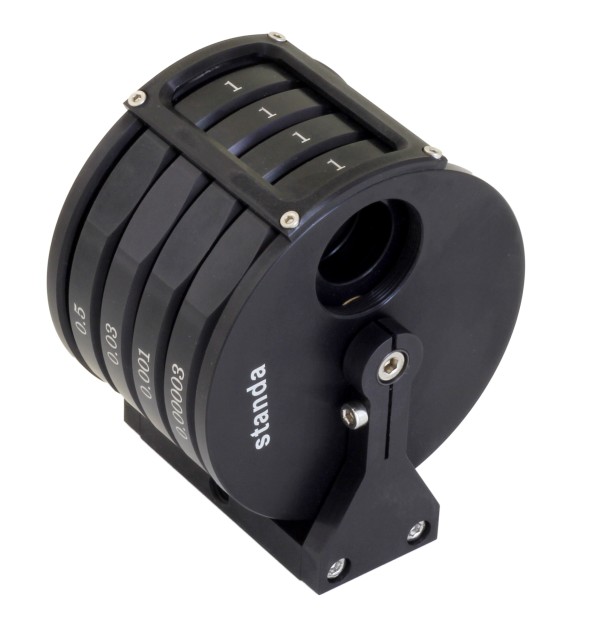

10CWA168 - Closed Variable Wheel Attenuator


		Zoom in

		Printable version

		View drawings

		Learn more here

		Download 3D


		4 wheels, each containing 3 filters & 1 empty space
		4 fixed positions per wheel
		Non-parallel filters (inclined by 4°)
		C-mount threads on both ends
		Connecting adapters available
		Stray light fully eliminated
		Variable height of the optical axis
		Three mounting holes
		Motorised Closed Variable Wheel Attenuator
		Motorized Variable Wheel Attenuator
		Open Variable Wheel Attenuator

Close Variable Wheel Attenuator 10CWA168 is used when it is necessary to fully eliminate the side background lighting when using photodetectors with high sensitivity (e.g. CCD, photomultiplier, etc.). You may order standard connecting adapters 10A168 and 10R168 separately. Custom adapters are available. Loosen the central axis and rotate the whole body of the filter to set the desired position of an optical axis at a height between 36-71 mm. The base of the attenuator has M6 holes on 3 sides for mounting versatility.
Weight: 0.55 kg

10CWA168 with a CCD camera
Close Variable Wheel Attenuator 10CWA168 is ideally suited for use with CCD cameras. Adapters 10R168 and 10A168 are used for connection.
10BC68-1 mounted to 10CWA168 through an adapter tube 10AT168

Adapters 10AT168, 10A168 and 10RE168

Similar products

10MCWA168-1	10MWA168	10WA168

Specifications

Diameter NDF			20 mm



Maximum thickness			3 mm



Non-parallel filters			(inclined by 4°)



Maximum deviation			0.09 mm



Clear aperture			Ø18 mm

Ordering Information

Model

10CWA168
