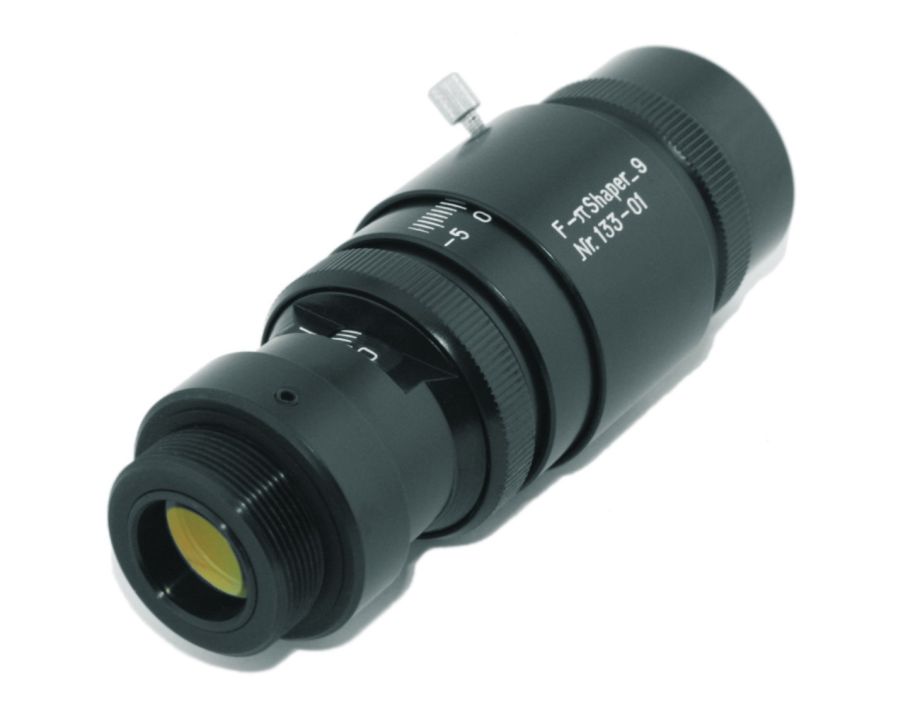

Using these unique tools the long-standing wish to manipulate the shape of focused beams becomes a reality. With nearly 100% efficiency Focal Beam Profile Shapers from series 10PSF9 produce various profiles: "Flattop", "Reverse Gauss", "Donut" "Trident".
Applications: • Photovoltaics • Marking and Engraving • Drilling • Scribing • Dicing • Material micromachining • Printing • Microwelding
Common specifications
Type Input beam
Telescope of Galilean type (without internal focus)
Input beam
- TEM00 Collimated or low divergence - Diameter <16 mm - Optimum 2w diameter for a Gaussian beam 4-8 mm (1/e2)
Output beam
- Collimated or low divergence - Profile is optimized for Intensity distribution manipulation in focal plane of a diffraction limited lens - Diameter <16 mm
