7T125 - Basic Translation Stages
Basic Translation Stages
Zoom in
Printable version
View drawings
Download 3D
10 mm travel

Low profile

X-Y-Z direct stacking

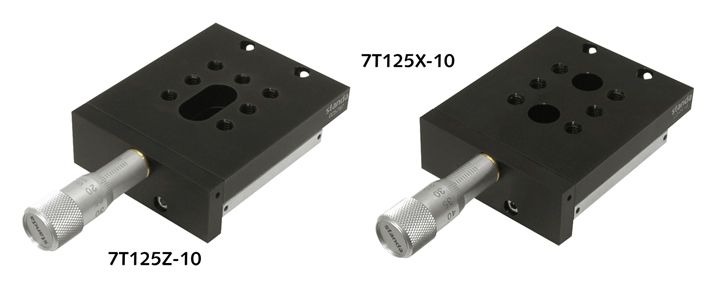

Basic Translation Stages 7T125. 7T125X-10 - for X axis. Two such stages stack in XY axes with greater stability (2 screws M6 are used). 7T125Z-10 - for Z axis. It has less XY mounting provisions than 7T125X. Rather it has extra mounting holes for end items. 2 screws M6 are used for Z stacking. 7T125Z-10 has patterns of mounting holes: M6 on the platform and M4 on the base. The base has a Ø12 mm clear aperture not obscured over the whole travel range. The platform rolls on ball bearing guides, and is preloaded against the driving screw by springs. Load capacity is up to 3 kg, when mounted vertically. The stages mount directly to their own type, or to other stages, optical tables. The stages are of black finished aluminium.

Basic Translation Stages 7T125 XYZ
XYZ, stages stacks directly to its own type. Only 4 standart M6 screws required.

Travel range10 mm
Sensitivity1 µm
Angular deviation< 200 µrad
Tracking accuracy2 µm
Reading accuracy5 µm (1/2 division)
Load capacity
Horizontal10 kg
Vertical (relative to driving screw)
against3 kg
away0.5 kg
Weight0.3 kg
Ordering Information
Model Price Availability
7T125X-10 € 249.00 today
7T125Z-10 € 249.00 today
7T125-XYZ € 752.00 today
