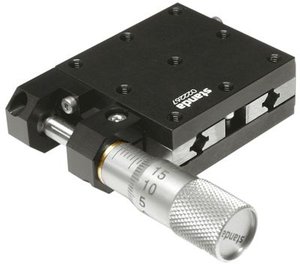

7T184-13 - Ball Bearing Translation Stage
Ball Bearing Translation Stage
Zoom in
Printable version
View drawings
Download 3D
Compact design

Precise movement

13 mm travel range

X-Y direct stacking

Lockable

Stacks directly with stages of 174 and 184 series


7T184-13 (2 pieces) stacked in XY coordinates 7T184-13 (2 pieces) and 7VT174-10 stacked in XYZ coordinates; 7VT174 (vertical translation stage) on top

7T184-13 (2 pieces) and 7VT174-10 stacked in XYZ coordinates; 7VT174 (vertical translation stage) at the bottom

7T184-13 (3 pieces) stacked in XYZ configuration 2AB174 Angle Bracket which is used for stacking Z axis while constructing XYZ stage and using only 7T184-13 ball bearing translation stages
3UBP-03 Universal Base Plate is required to fix the stages to a flat surface e.g. optical table. Reach travel minimum and maximum to gain access to four M3 mouting holes for direct mounting of the stage.

Custom request with bigger knob 7T184-13-001


Specifications
Drive typeSide
Travel range13mm
Sensitivity1µm
Angular deviation<200µrad
Tracking accuracy2µm
Reading accuracy5µm (half division)
Load capacity
Horizontal10 kg
Vertical3 kg
Lead screw pitch0.5 mm
GuideBall bearing
Body materialAluminium
FinishBlack anodized
Weight0.12 kg
Assmeblies
X-Ydirectly
Z2AB174
Ordering Information
Model Price Availability
7T184-13 € 284.00 today




In the video below mini linear translation stage 7T184-13 is utilized in multi-axis manual positioning system (micromanipulator).

In the video below manual linear stage 7T184-13 is mounted vertically within multi-axis system.
