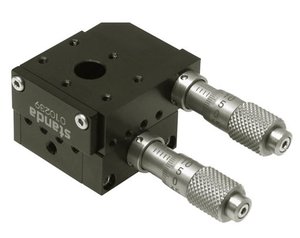

7T228T-9S35M-5 - Micro Stage with Micrometer Screws
Micro Stage with Micrometer Screws
Zoom in
Printable version
View drawings
Download 3D
Ultra Compact configuration
Precise rectilinear movement
4 mm X-Z or X-Y travel range
Precision ball bearings

Micro Translation Stage 7T228T-9S35M-5 provides smooth, precise two-axis movement. Mini micrometers 9S35 are positioned so that the unit is controlled only from one side. That's why 7T228T-9S35M-5 is very handy in optical schemes with very dense placement of instruments. The travel of this stage is 4mm with sensitivity of  1 µm. To mount components on it, M2 tapped holes are provided. The unit has a clear aperture of 7mm in diameter. So it is ideally suited for use as a holder of diaphragms. The stage can be directly mounted on breadboards and other Standa equipment by use of mounting holes M3 and M2. Angle bracket 2AB128 may be used to combine the stage with other units. The base and the platform are made of black anodized aluminium.

Micro Stage with Micrometer Screws

Travel range4 mm
Sensitivity1 µm
Tracking accuracy2 µm
Reading accuracy5 µm
Load capacity:
Horizontal1 kg
Vertical0.2 kg
Weight0.1 kg
Ordering Information
Model Price Availability
7T228T-9S35M-5 € 329.00 today
