7VT173-25 - Vertical Translation Stages
Vertical Translation Stages
Zoom in
Printable version
View drawings
Download 3D
Motorized vertical translation stage

Vertical translation stages of smaller size
more sensitive and precise find here

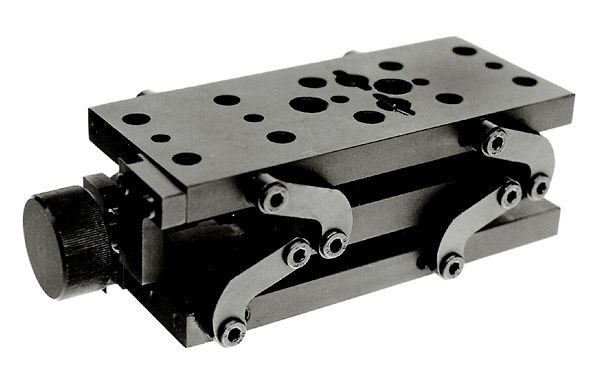

Adjustable Height Platform 7VT173-25 of original design is a stable vertical translation stage of 25 mm travel range. Maximum load capacity – 3 kg. A polished lead screw has 0.5 mm pitch. It allows to define the height of a platform with 20 μm sensitivity. Arrays of mounting holes M6 and Ø6.5 with 25 mm spacing are identical on the upper and lower plates. Adjustable Height Platform is ideal for use with 7T175-50 or 8MT175-50 Translation Stages when it is necessary to define one or two horizontal coordinates at a certain height. The platform is produced from black anodized aluminium, the lead screw block is produced from stainless steel and bronze.



Specifications
Load capacity3 kg
Travel range25 mm
Sensitivity20 µm
Ordering Information
Model Travel
Range,
mm
Weight,
kg
Price Availability
7VT173-25 25 0.5 € 284.00 today
