7VT40-13 - Vertical Stage
Vertical Stage
Zoom in
Printable version
View drawings
Download 3D
Compact

Ball bearing

High precision

Travel range 13mm

Stacks directly with stages of 174 and 184 series

See 7VT174-5 for 5 mm travel
Motorized version

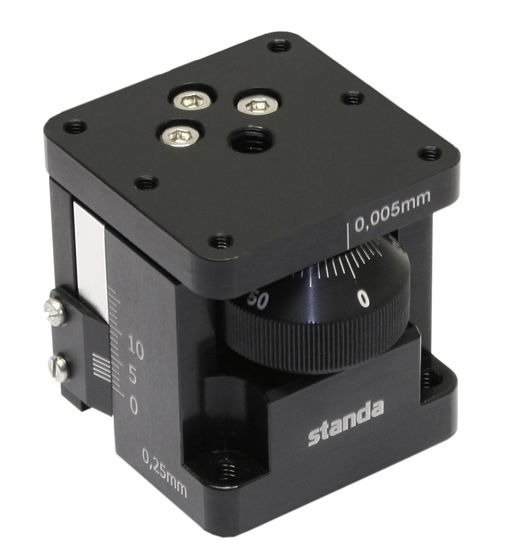

Vertical Stages 7VT40-13 is made in most compact design. Platform is made with central M6 mounting hole and six M3 mounting holes for stacking with 174 and 184 series stages and other objects. Vernier scale is engraved on one side of the stage. Travel range 13 mm. Four M4 holes are made in the positioner's platform for mounting on other suitable surfaces, two of those can be used as thought holes for M3x10 screws to stack stages ontop of others, for example on translation stage 7T184-13.


3UBP-03 Universal Base Plate is required to fix stages to a flat surface e.g. optical table.



Specifications
Travel range13 mm
Sensitivity1 µm
Tracking accuracy1 µm
Reading accuracy5 µm
Load capacity5 kg
Lead screw pitch0.25 mm
GuideBall bearing
Body materialAluminium
FinishBlack anodized
Weight0.25 kg
Ordering Information
Model Price Availability
7VT40-13 € 284.00 today




In the video below Manual Vertical Stage is shown as part of multi-axis precision positioners assemblies.
