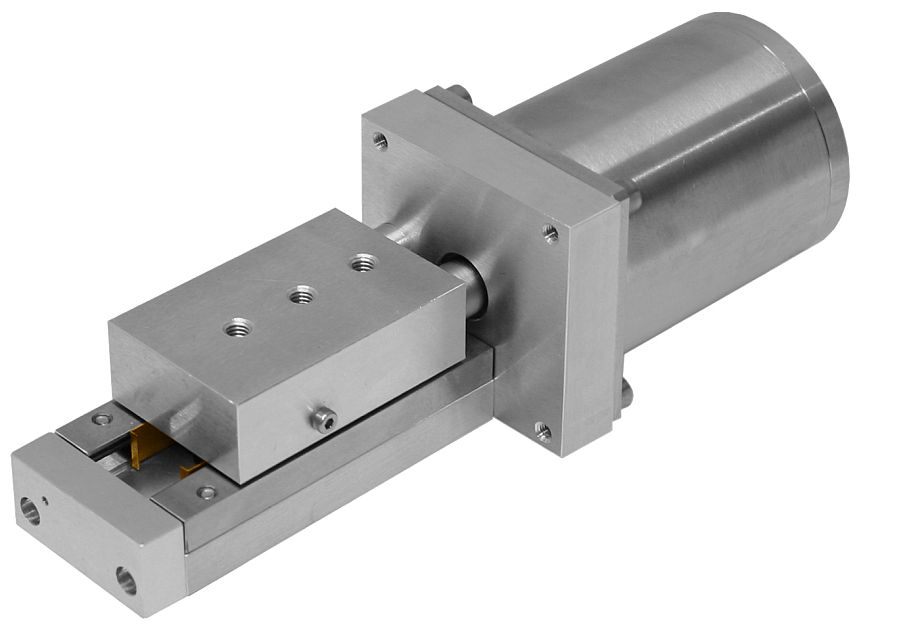

Vacuum compatible motorised stages 8MT173V are equipped with 10-6 Torr vacuum compatible stepper motor, all mechanical parts are lubricated with High vacuum compatible grease. Aluminum parts are not anodized. Stages are cleaned in vacuum chamber and packed before dispatch, so that it can be immediately placed in vacuum chamber after purchase without spoiling the vacuum. Cleaning and packing not included in price.
| Model |
8MT173V-10 |
8MT173V-20 |
8MT173V-25 |
8MT173V-30 |
| Travel range, mm |
10 |
20 |
25 |
30 |
| Lead screw pitch, mm |
0.25 |
| Resolution in full step*, µm |
1.25 |
| Max. speed*, mm/s |
2.5 |
| Load capacity: |
| Horizontal, kg |
3 |
Vertical, kg
(motor position from below only) |
1 |
| Fleuroplastic cable |
integrated, 2 m length |
| Motor connector |
HDB15(M) |
| Motor |
VSS42 |
| Weight, kg |
0.42 |
0.48 |
0.49 |
0.5 |
| Assemblies: |
| X-Y |
2CP173V-20 |
| Z |
2AB173V-20 |
| Recommended controllers |
8SMC5-USB |
*Test condition : STANDA controllers; Power supply 36V
High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.
Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy |
 |
Connectors of other sizes and vacuum feedthroughs are available on request.
|
For Angle Brackets, Rails and Carriers visit our
