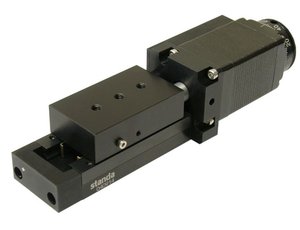

8MT173 - Motorized Translation Stages
Motorized Translation Stages
Zoom in
Printable version
View drawings
Download PDF
Download 3D
Motorized Translation Stages
Narrow (30 mm)
Compact design
High guide way accuracy
Lead screw pitch 0.25 mm
Travel 10, 20, 25, 30 mm
Optional travel 5, 6, 8 mm and other
X-Y-Z configurations available
Stages with DC motor
Version for vacuum

Motorized Translation Stages 8MT173 are created on the basis of 7T173 manual translation stages and have identical mechanical parameters. Resolution, speed and load capacity all depend on parameters of the motor, translation stages, as well as on the controller and driving mode a user chooses to use. For vertical (Z axis) mounting we offer angle bracket 2AB173-20. Angle brackets of custom design can be manufactured on request. Two mechanical limit switches built into each translation stage used for emergency stop at ends of travel range or to establish a reference position with accuracy of several motor steps (use E4 option for more accurate zero position setting, see Sensors information). Motor position can be visually determined with accuracy of one step by reading a scale engraved on dial knob fitted on motor shaft (use Encoder for monitoring exact position using PC). Body and platform of 8MT173 are made of black finished aluminum. Functional parts are made of steel.


Vacuum compatible 8MT173V series stages are equipped with 10-6 Torr vacuum compatible stepper motor, all mechanical parts are lubricated with High vacuum compatible grease. Aluminum parts are not anodized. Stages are cleaned in vacuum chamber and packed before dispatch, so that it can be immediately placed in vacuum chamber after purchase without spoiling the vacuum. Cleaning and packing not included in price.

Model 8MT173 8MT173V-VSS42
Travel range, mm 10 | 20 | 25 | 30 10 | 20 | 25 | 30
Lead screw pitch, mm 0.25
Resolution in full step*, µm 1.25
Max. speed*, mm/s 5 2.5
Load capacity:
Horizontal, kg 5 3
Vertical, kg 2 1
Cable integrated, 1.6 m length integrated vacuum compatible cable, 2 m length
Motor connector HDB15(M)
Motor 28 VSS42
Weight, kg 0.43 | 0.46 | 0.47 | 0.48 0.42 | 0.48 | 0.49 | 0.5
X-Y 2CP173-20 2CP173V-20
Z 2AB173-20 2AB173V-20
Recommended controllers 8SMC5-USB
Mechanical end limit switches 2, pushed is "closed"

*Test condition :
STANDA controllers; Power supply 36V

Ordering Information
