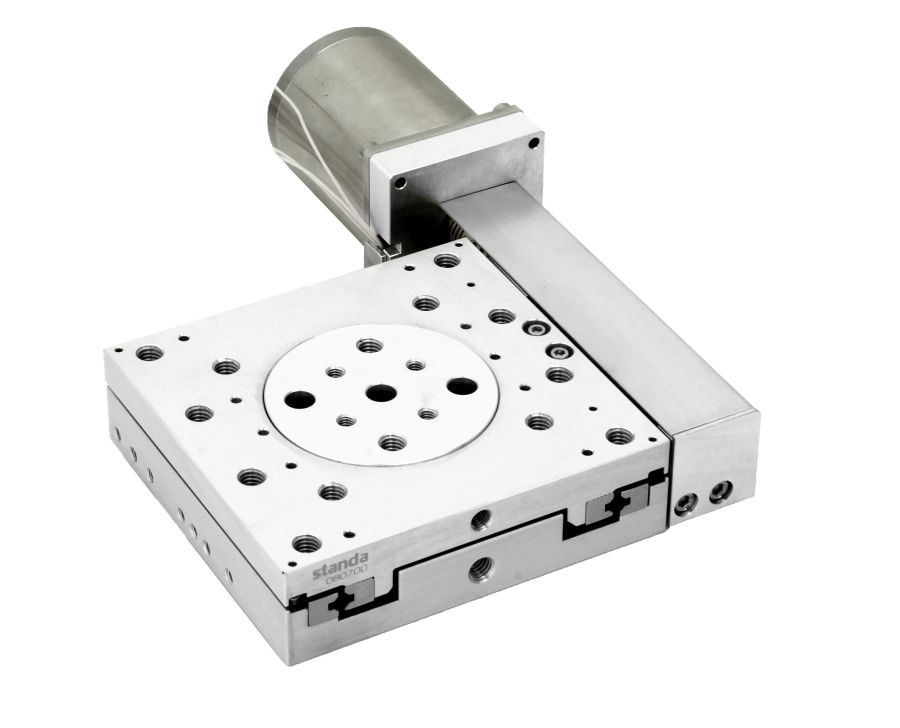

8MT167V-25 - Vacuum Compatible Motorized Stage
Vacuum Compatible Motorized Stage
Zoom in
Printable version
View drawings
Download 3D
Low profile
Insert platform
Ø50 mm clear aperture
High stiffness and thermal stability with a low profile design
Non-vacuum version



Model 8MT167SV-25LS-VSS42 is made with solid one-piece platform, please take a look here.

High vacuum compatible Sub-D, male or female, 9 or 15 pin connectors can be ordered separately. The connectors are made of glass filled polymer with a stainless steel outer and suitable for High Vacuum (10-6 mbar) and temperatures up to 110°C.

Specification of HV Sub-D Connectors:
Vacuum: 10-6 mbar
Body material: DEP
Temp. range: -55°C to 110°C
Pin material: Gold plated copper alloy

Connectors of other sizes and vacuum feedthroughs are available on request.



Specifications
Travel tange25 mm
Resolution
in full step1.25 µm
in 1/8 step0.156 µm
Lead screw pitch0.25 mm
Max speed2.5 mm/s
Load capacity
Horizontal5 kg
Vertical3.5 kg
MotorVSS42
Vacuum compatible cableintegrated, 2 m
ConnectorHDB15(M)
Limit Switches2, mechanical
switch polaritypushed is closed
Weight0.85 kg
Ordering Information
Model
8MT167MV-25LS-VSS42
8MT167SV-25LS-VSS42
8MT167V-25LS-VSS42




Vacuum compatible motorized linear stages 8MT167SV-25LS-VSS42 XY configuration is incorporated in precision multi-axis system:



Cant find what you want? Not a problem! Browse our standard sections and request for a vacuum modification of standard piece using this form!
