8MVT40-13 - Motorized Vertical Translation Stages
Motorized Vertical Translation Stages
Zoom in
Printable version
View drawings
Download PDF
Download 3D
Motors of other types are available
Travel range 13 mm
Stacks directly with stages of 174 and 184 series
Manual version
Similar manual version with 5 mm travel
Vacuum version available

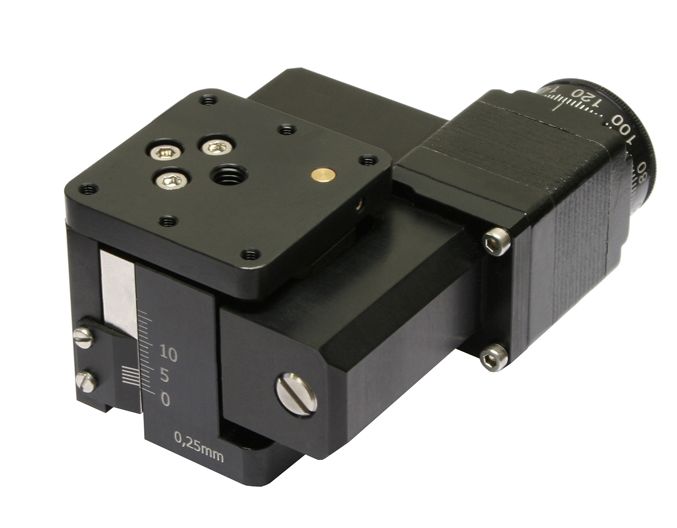

Motorized Vertical Translation Stages 8MVT40-13 is made in most compact design. Platform is made with central M6 mounting hole and six M3 mounting holes for stacking with 174 and 184 series stages and other objects. Vernier scale is engraved on one side of the stage. Travel range 13 mm. Four M4 holes are made in the positioner's platform for mounting on other suitable surfaces.





Specifications
Travel range, mm13
Lead screw pitch, mm1
Reduction gear ratio1/60
Resolution(STANDA controllers; Power supply 36V)
in full step, µm0.083
in 1/8 step, µm0.01
Max. speed*, mm/s0.416
Load capacity, kg6
Weight, kg0.45
Cableintegrated, 1.6 m length
Motor connectorHDB15(M)
Stepper motor28S
Recommended controllers8SMC4-USB
Optocoupler end limit switches2
TypePushed is "open"
Ordering Information
Model
8MVT40-13-1
