8MVT70-13 - Motorized Z Stage
Motorized Z Stage
Zoom in
Printable version
View drawings
Download 3D
Motorized Z Stage
High precision movement
Straight lift



Compact Motorized Z Stage of original Standa design provides 13 mm of reliable vertical motion. The stage ideally fits many Standa motorized linear stages. 8MR151 series motorized rotation stages can be directly mounted on top of 8MVT70-13-1.





Specifications
Travel range13 mm
Resolution in full step5 μm
Resolution in 1/8 step0.625 μm
Lead screw pitch1 mm
Maximum speed20 mm/sec
Load capacity4 kg
Unidirectional repeatability 1 μm
Bi-directional repeatability2 μm
Motor2 phase stepper actuator
Weight0.75 kg

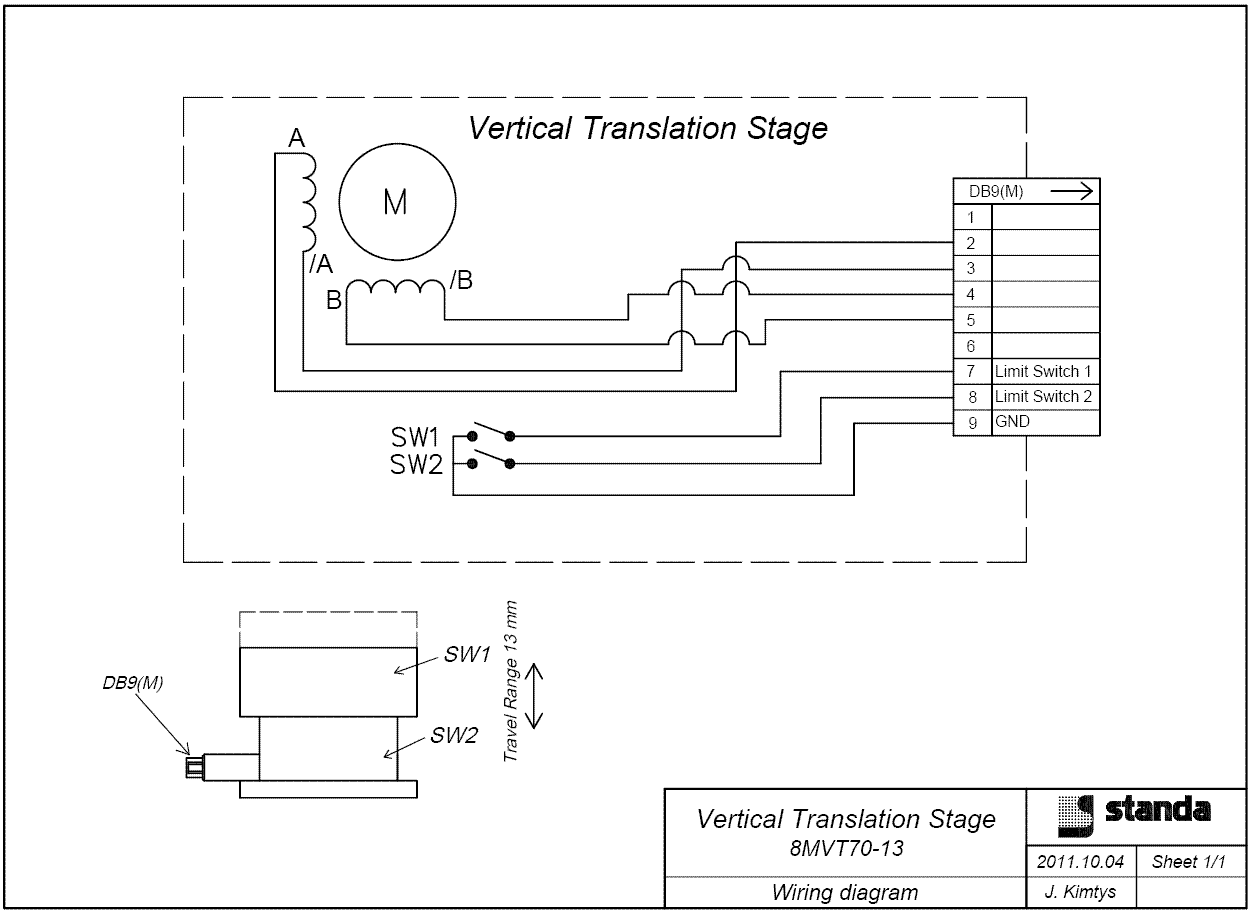

Mechanical end limit switches2, wiring diagram
Switch polaritypushed is closed
Recommended controllers8SMC4-USB
Ordering Information
Model
8MVT70-13-1
