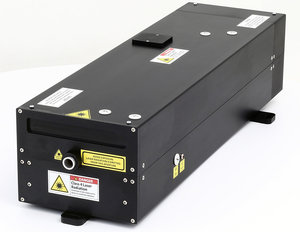

STA-IN-532/20 - DPSS Nd:YAG Q-Switched Laser


		Zoom in

		Printable version

		View drawings


		20W at 532 nm
		Ready for industrial applications
		Stable TEM₀₀ operation
		Perfect beam quality
		Long-life pump source
		SH crystal thermal stabilization
		Compact and robust design
		Water-Cooled

The STA-IN-532/20 industrial laser provides high stability and durability output parameters which are assured by specific resonator design and original nonlinear crystal temperature control.

Applications:

- Precision Materials Processing
- Diamonds Cutting
- Ti:Sapphire Pumping Source

Apply to Standa specialists for more information on this product...

Specifications

Wavelength		532 nm



Power		20W



Output Energy		2-4 mJ



Mode		TEM₀₀



Repetition rate		4-10 kHz



Pulse width		<75 ns



Beam diameter		0.9 mm



Beam divergence at 8 kHz (FWHM)		<1.6 mrad



M² at 8 kHz		<1.3



Output Stability (over 8h)		<2.4 %RMS



Pulse-to-Pulse Stability		<1.2 %RMS



Polarization		Linear (Vertical)



Operating Temp		18 - 30 ºC



Cooling		Chiller (recirculating water)



Dimensions



	Laser Head	170 x 140 x 580 mm



	Power Supply	482 x 80 x 280 mm

Ordering Information

Model

STA-IN-532/20

STA-IN-532/20 has external power supply
and it is a water-cooled laser. Appropriate
chiller could be supplied by request.
Also the laser could be utilized with customers
already existing cooling system with stipulated charateristics.
