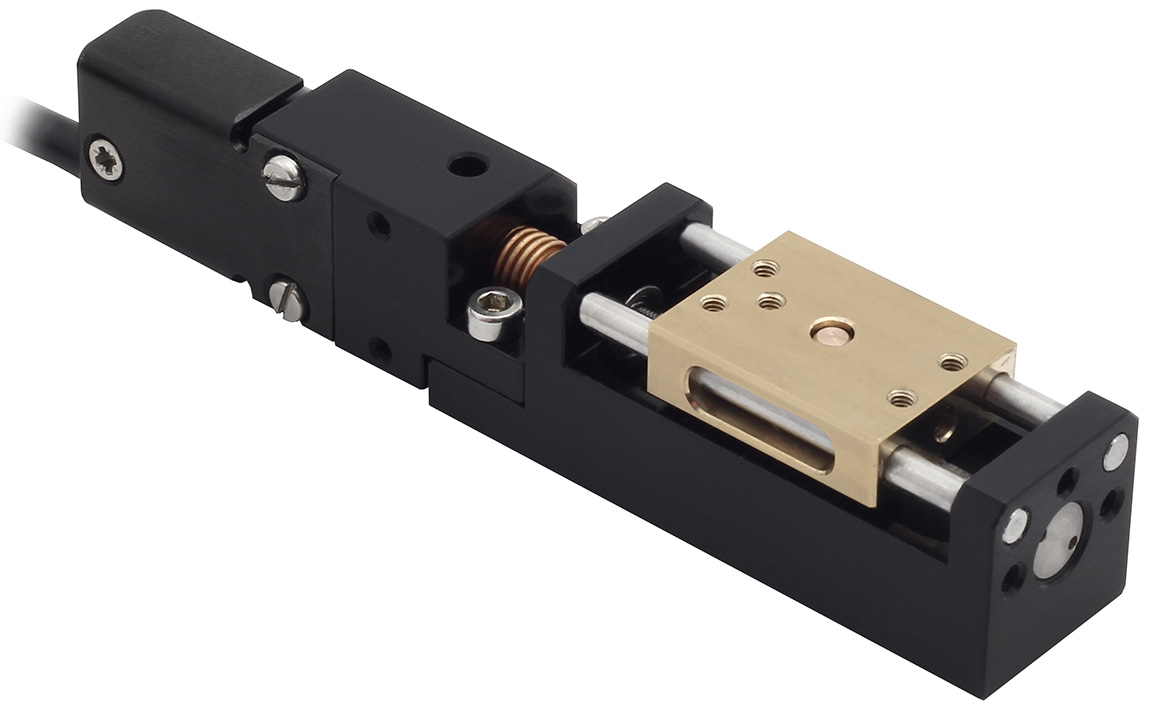

8MT18-13 - Miniature Motorized Linear Stage
Miniature Motorized Linear Stage
Zoom in
Printable version
View drawings
Download 3D
13 mm travel range
1 mm/s max. speed
1/8 µm achievable resolution
0.5 kg load capacity
Ultra-compact and lightweight
Multi-Axis Micro Stages Assemblies


Model 8MT18-13
Kinematics & Feedback information
 Travel Range, mm 13
 Resolution in Full Step, µm 1
 Resolution in 1/8 Step, µm 0.125
 Maximal Speed, mm/s 1
 Limits Switches Mechanical
(2 pcs on borders)
 Switch Polarity Pushed is Closed
Load & Transmission Information
 Lead Screw Pitch, mm 0.35
 Load Capacity (Centrally Placed)
  Horizontal, kg 0.5
  Vertical, kg 0.25
 Stepper Motor F10
 Gearbox 16/1
Material & Environment Conditions
 Housing Material Aluminum
 Housing Coating (Finish) Black Anodizing
 Environment Pressure Normal Atmosphere
(10-3 Torr on request)
 Housing Material Aluminum
Control, Communication and Cabling
 Recommended Controllers 8SMC5-USB series
 Recommended Power Supply PS12-3-4
 Cable Length, m 1.6 (other by request)
 Connector HDB15(M)
 Base plate 3BP8MT18
 XY Configuration 2CPMT18-1
 Z Configuration Request
Additional Details
 Dimensions of Moving Platform, mm 22x17 mm
 Measurement System Metric
 RoHS Compliant
 Weight, kg 0.15

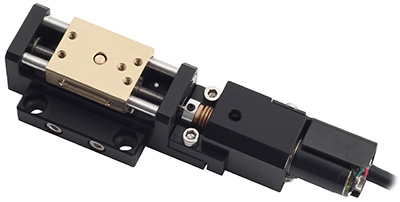

Miniature Motorized Translation Stage 8MT18-13 with Side Adapter Plate 3BP8MT18

Miniature Motorized Translation Stage 8MT18-13 with Side Adapter Plate 3BP8MT18.

Ordering Information
Model Description Price Availability
8MT18-13 Miniature Motorized Linear Stage € 698.00 today
3BP8MT18E Base Plate € 21.00 today
