Specifications

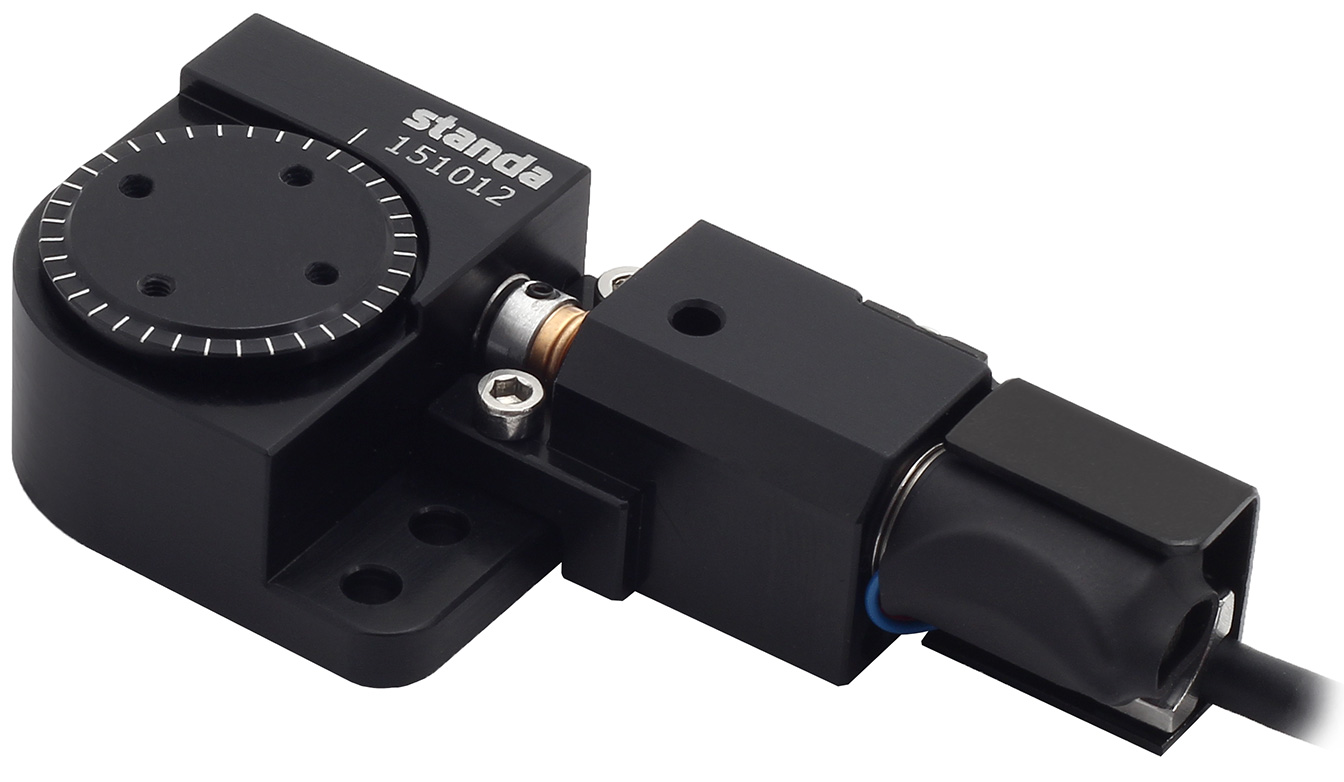

| Model |
8MR20-F10 |
| Kinematics & Feedback information |
| Angular Range, deg |
360 |
| Resolution in Full Step, arcsec (deg) |
67 (0.0186) |
| Resolution in 1/8 Step, arcsec (deg) |
8.375 (0.0023) |
| Maximal Speed, deg/sec |
14 |
| Limits Switches |
Hall Sensor (1 pcs.) |
| Switch Polarity |
Pushed is Closed |
| Load & Transmission Information |
| Load Capacity (Centrally Placed) |
| Horizontal, kg |
0.5 |
| Vertical, kg |
0.25 |
| Stepper Motor |
F10/16-3 |
| Gearbox |
16/1 |
| Gear Reduction Rate |
60/1 |
| Material & Environment Conditions |
| Housing Material |
Aluminum |
| Housing Coating (Finish) |
Black Anodizing |
| Environment Pressure |
Normal Atmosphere
(10-3 Torr on request) |
| Control, Communication and Cabling |
| Recommended Controllers |
8SMC5-USB series |
| Recommended Power Supply |
PS12-1.5-4 |
| Cable Length, m |
1.6 (other by request) |
| Connector |
HDB15(M) |
| Additional Details |
| Dimensions of Moving Platform Ø, mm |
23 |
| Measurement System |
Metric |
| RoHS |
Compliant |
| Weight, kg |
0.15 |
|
|
