| Model | 8MID225-12 |
| Kinematics & Feedback information |
| Travel range, deg | 93 |
| Aperture, mm | Ø12...Ø225 mm |
| Closing speed, seconds | 3 |
| Limit switches type | mechanical (2 pcs.) |
Transmission Information |
| Design type | spur gear motorized iris diaphragm |
| Spur gear reduction ratio | 20:1 |
| Motor type | stepper |
| Motor model | 4118 |
| Design voltage, V | 5.4 |
Material And Environment Conditions |
| Housing material | aluminum alloy / stanless steel |
| Housing coating (finish) | black anodizing (aluminum) / passivated (stanless steel) |
| Environment pressure | normal atmosphere |
| Operating temperature, deg. C | 20±2 |
Control, Communication and Cabling |
| Recommended controllers | 8SMC5-USB series |
| Recommended power supply, V | 36...48 |
| Cable length, m | 1.6 |
| Connector | DB9(M) |
Additional Details |
| Iris diaphragm outer diameter, mm | 300.00 |

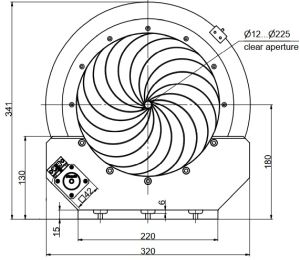

| Overall stage dimensions, (W x L x H) mm | 341 x 320 x 122.5 |
| Measurement system | Metric/Imperial |
| Weight, kg | 6 |
