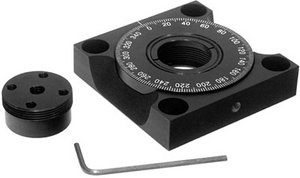

5PHH50 - Polarizer Holder / Rotation Stage
Polarizer Holder / Rotation Stage
Zoom in
Printable version
View drawings
Download 3D
Apertures for Ø1" (25.4 mm) or 3" (76.2 mm) optics
Can be used as an optical mount and rotation stage
Accepts optics up to 9 mm thick
Continuous 360° rotation with 2° scale gradation
Roller bearings design
Material: black anodized aluminum

Base of 5PHH50 has beveled sides for fingers to rotate the platform by its knurled edge. You may transform a polarizer holder into a rotation stage. For this you'd need to order an insert platform 5PHH50-1A1 separately. To mount components on it the platform has a pattern of M4 holes and a central Ø7-to-M6 hole. If you need to fasten to the central hole a unit with M4 mounting hole, you can slip an M4 screw through this Ø7-to-M6 combined hole (see the drawing for 5PHH50-1).

This mount is also compatible with Ø25.0 mm optics.

Polarizer Holder 5PHH50-1 also could be used as a graduated rotator in combination with 5MBM24 or 5PH51-1 or other mounts as it shown in the picture.

Related optics
Crystalline quartz waveplates Radial Polarization Converter Rochon Polarizing Prisms

Ordering Information
Model Aperture Price Availability
5PHH50-1 1" (25.4 mm) € 86.00 today
5PHH50-1A1 - € 7.00 today
5PHH50-3 3" (76.2 mm) request request
