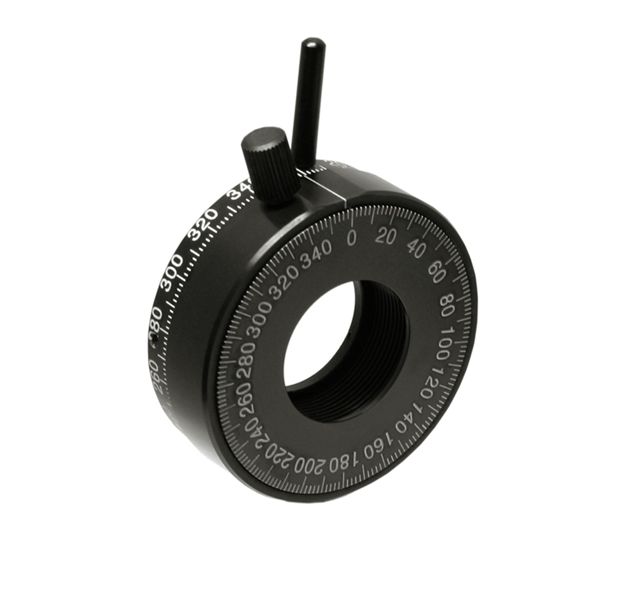

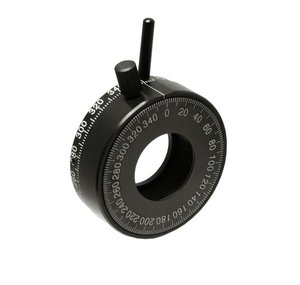

5PH50 - Polarizer Holders
Polarizer Holders
Zoom in
Printable version
View drawings
Download 3D
Polarizer rotators for Ø1”, Ø2”, Ø3” optics

Accepts optics up to 13 mm thick

Continuous 360° rotation with 2° scale gradation

Lockable

Roller bearings design

Two graduation scales that may be useful in
little space applications

M6 and M4 threaded holes for mounting on posts or bases

Material: black anodized aluminum



Polarizer Holders 5PH50 are ideal for positioning rotation sensitive optics such as polarizers or waveplates. Holders are offered for optics 1", 2" and 3" in diameter. Optics is placed inside central aperture, where it is securely held in place by a threaded retaining ring. The position is indicated on two 360° angular scales, with gradation of 2°. Where space prevents from reading one scale, you always will be able to view another. The base of the polarizer holder has threaded holes M6 and M4 for mounting on posts or bases. 5PH50 has a removable rod to rotate the platform by any of its 4 holes.

Polarizer Holders 5PH50-H are the same as 5PH50, except that their fixing screw is tightened with a hex-key (supplied), and it doesn't stand out from the surface. Like in 5PH50, the platform is rotated by any rod or the same hex key. Polarizer holders are made of black anodized aluminium.


5PH50-3
for Ø76.2 mm
(3 inch) optics
5PH50-2
for Ø50.8 mm
(2 inch) optics
5PH50-1
for Ø25.4 mm
(1 inch) optics



Related optics

Crystalline quartz waveplates Radial Polarization Converter Rochon Polarizing Prisms


Ordering Information
Model Clear
Aperture,
mm
Optics
Diameter,
mm
Fixing Weight,
kg
Price
5PH50-1 23 25.4 screw 0.08 € 76.00
5PH50-1-H 23 25.4 hex 0.08 € 76.00
5PH50-2 48 50.8 screw 0.18 € 152.00
5PH50-2-H 48 50.8 hex 0.17 € 152.00
5PH50-3 72 76.2 screw 0.46 € 231.00
5PH50-3-H 72 76.2 hex 0.45 € 231.00
