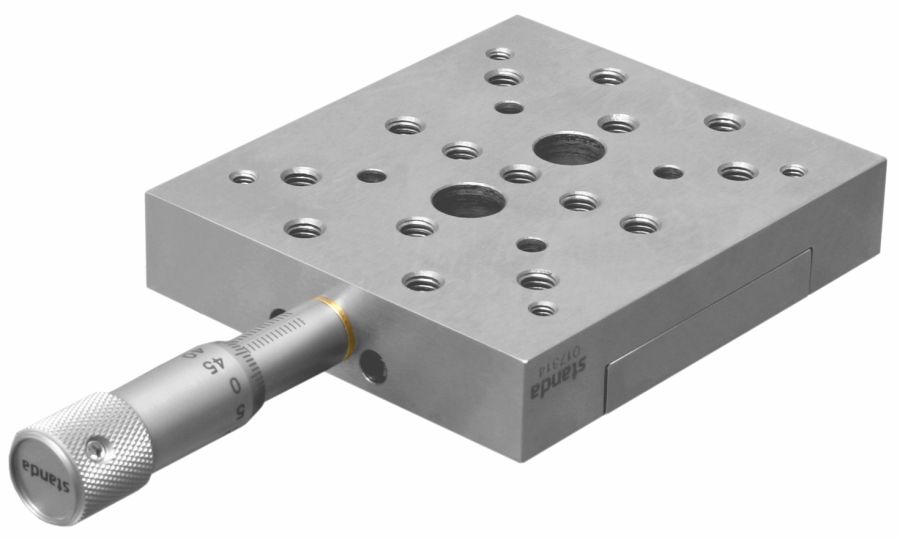

7T67SSV-25 - Stainless-Steel-Vacuum-Compatible Linear Stage
Stainless-Steel-Vacuum-Compatible Linear Stage
Zoom in
Printable version
View drawings
Non-vacuum version



Stainless Steel Vacuum-Compatible Linear Stage 7T67SSV-25 have a large mounting surface, great travel range for this relatively small size, low profile and increased stability of precision. Box designed reinforces the stage, reducing flex. Stainless Steel, as a material, adds to stability. You Can mount a second driving screw on the other end (to lock the platform in fixed positioning applications). The platform is preloaded by springs. The stage can be stacked immediately to other units or to their own type (e.g. in X-Y configuration). The stage could be used upside-down. For immediate attachment the base has 2 clearance holes for M6 screws. Similarly, the platform has clearance holes for M4 screws. Slip the screws from top or under through the across holes in a platform/base. Micrometers 9S75M-25 comes as standard.

Designed for Torr 10-6 vacuum.


7T67SSV-25 XYZ using angle bracket 2AB67SSV-25



Specifications
Travel range25 mm
Sensitivity1 µm
Reading accuracy10 µm
Angular deviation<200 µRad
Tracking accuracy2 µm
Load capacity:
Horizontal20 kg
Vertical5 kg
Vacuum10-6 Torr
Assemblies:
X-Ydirectly
Z2AB67SSV-25
Ordering Information
Model
3UBP175V
2AB67SSV-25
7T67SSV-25





Cant find what you want? Not a problem! Browse our standard sections and request for a vacuum modification of standard piece using this form!

   For Angle Brackets, Rails and Carriers visit our Brackets & Rails section

   For Baseplates, Posts and Various mounting equipment visit our Base Mounts & Accessories section

   For Self-centering and simple yet convenient optics holders visit our Optical Mounts section

   For large selection of precise Optical Positioners visit our Optical Positioners section

   For Platforms and Base Positioners visit our Base Positioners section

   For full list of manual translation and rotation stages visit our Translation & Rotation stages section

   For full list of motorized translation and rotation stages visit our Motorized Positioners & Controllers section

   For Fine Screws and Micrometers visit our Fine Adjustment Screws section

Still nothing? Try our Custom Section for inspiration and send us your technical requirement and drawings at sales@standa.lt!
