| Specifications |
 |
| Travel range | | 4 mm
|
|
|
|
| Resolution | | <1 arcsec
|
|
|
|
| Tilt range | | 9°(about two axes)
|
|
|
|
| Speed | | from 1 arcsec/sec to 1°/sec
|
|
|
|
| Installed actuators | | 2 x 8CMA20-8/15
|
|
|
|
| Optocoupler end limit switches | | 2 per actuator
|
|
|
|
| Switch polarity | | pushed is open
|
|
|
|
| Cable | | 1,2 m length cable included
|
|
|
|
| Motor connector | | HDB15(M) (wiring diagram)
|
|
|
|
| Recommended controllers | | 8SMC5-USB |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
|
|
|
|
|
|
|
|
|

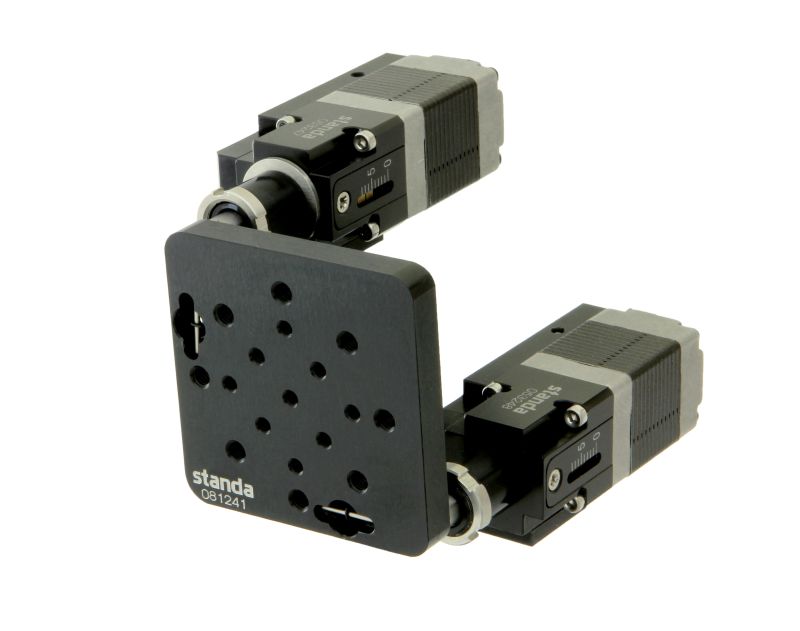

| 8MUP21-2 |
|
|
|
|
|
|
|
|
|
|
|
