| Specifications |
 |
| Travel range | | 8 mm
|
|
|
|
| Resolution | | 1.25 µm
|
|
|
|
| Lead screw pitch | | 0.25 mm
|
|
|
|
| Nominal force | | 30 N
|
|
|
|
| Tip shape | | Round. Flat on request.
|
|
|
|
| Cable | | integrated, 1.2 m length
|
|
|
|
| Motor connector | | HDB15(M)(wiring diagram)
|
|
|
|
| Stepping motor | | 20
|
|
|
|
| Weight | | 0.10kg
|
|
|
|
| Recommended controllers | | 8SMC5-USB
|
|
|
|
| Optocoupler end limit switches | | 2 (wiring shematic)
|
|
|
|
| Switch polarity | | pushed is open |
|
|
|
|
|
|
|
Product added to the Wishlist
| Ordering Information |
|
| Model |
|
|
|
|
|
|
|
|
|
|

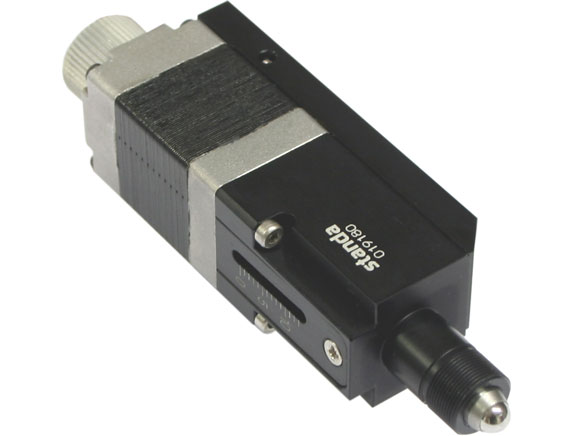

| 8CMA20-8/15 |
|
|
|
|
|
|
|
|
|
|
|
