1BS-2040-015 - Solid Steel Breadboard
Solid Steel Breadboard
Zoom in
Printable version
View drawings
Download 3D

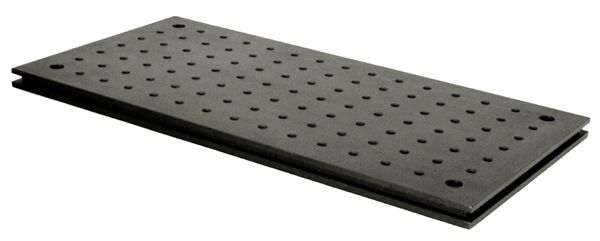

Solid Steel Breadboard
Recently appeared possibility to order same breadboard
from stock made of black anodized aluminum.



Breadboard 1BS-2040-015 (former part number 1B82) is an alternative to the honeycomb table tops. It is particularly useful in small optical setups. 1BS-2040-015 is a steel plate, of one size. Finish is black chemically oxidized. The breadboard has grooves on all 4 sides, so you can quickly mount it using Table Clamps 3TC5 and 3TC6. On the corners there are 4 holes for M6 screws used to mount directly to tables or to fix at a certain height on Silent Rods 2SR32.

Solid steel breadboard mounted on optical table

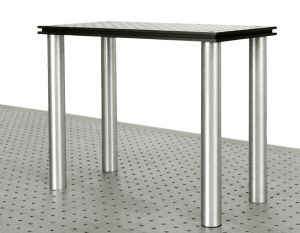

1BS-2040-015 mounted on silent rods


Fastening with Table Clamps

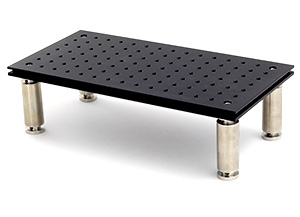

Solid Aluminium breadboard plate on silent rods
1BAL-2040-015 mounted on 100 mm high silent rods

Get to know more about types of breadboards in 1 minute video. Standa optical breadboard selection guide:





Specifications
Flatness
1BS-2040-015±0.03 mm
(better by request)
1BAL-2040-015±0.15 mm
PatternM6 holes spaced by 25 mm
Dimensions
Length400 mm
Width200 mm
Thickness15 mm
Ordering Information
Model Material Weight,
kg
Price Availability
1BS-2040-015 black finished
ferromagnetic steel
8.9 € 179.00 4 weeks
1BAL-2040-015 black anodized
aluminium
3 € 204.00 today
1BS-2040-015SS Stainless Steel
Uncoated
request request request
1BS-2040-015SS-NM Non-Magnetic
Stainless Steel
Uncoated
requet request request
1BS-3030-015 black finished
ferromagnetic steel
300x300mm
request request request
