| Model |

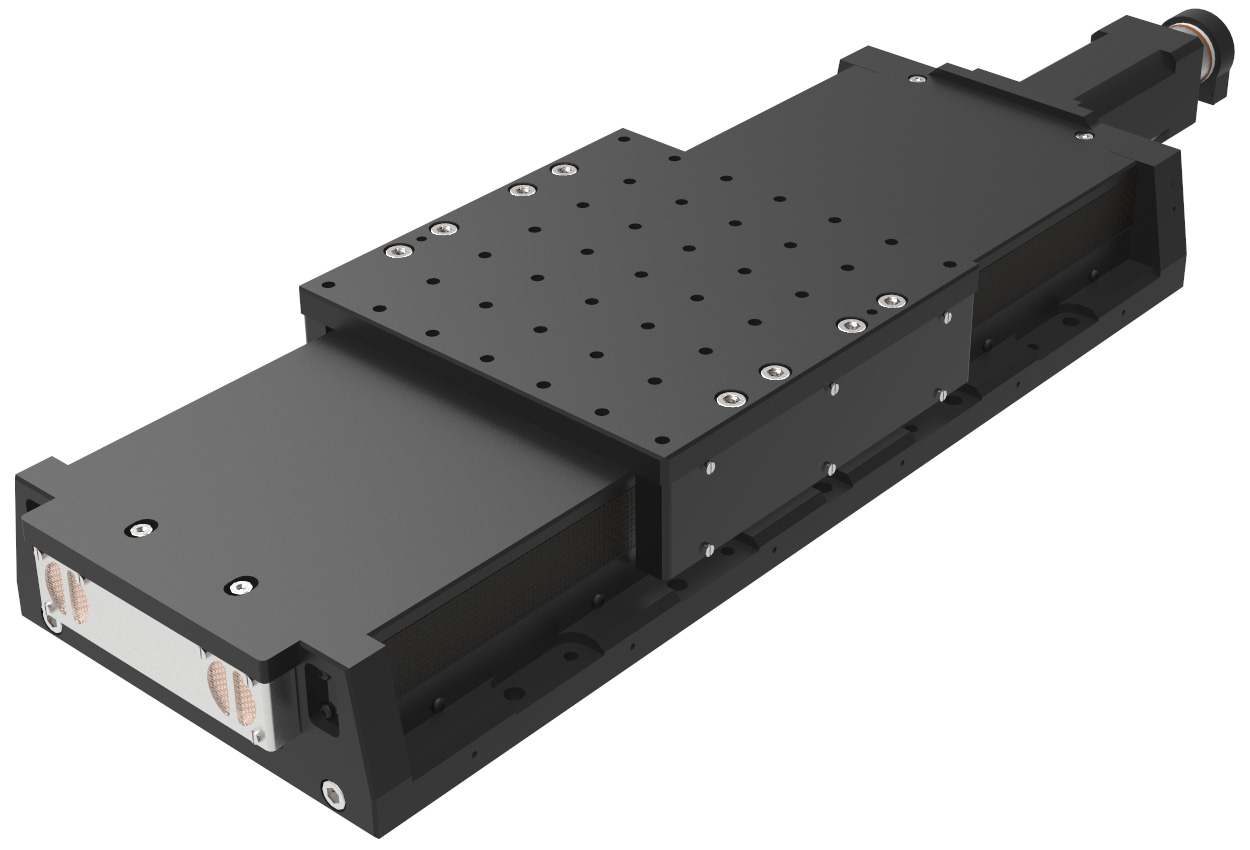

8MT165-200-B43 |
| Kinematics & Feedback information |
| Travel Range, mm |
200 |
| Encoder Type |
Optical |
| Encoder Model |
MEn3 |
| Encoder Resolution 1), PPR / CPR |
5000 / 20000 |
| Encoder Interface |
Differential RS422 |
| Multiplication factor |
N/A |
| Encoder Grating Period, mdeg |
72 |
| Reference Mark (Index) |
Yes |
| Absolute Accuracy 2) |
| Before Calibration, µm |
±5 |
| After Calibration, µm |
< ±2 |
| Uni-Directional Repeatability, µm |
N/A |
| Bi-Directional Repeatability (peak to peak) 2), µm |
better than ±1 |
| Bi-Directional Repeatability (RMS) 2), µm |
±0.55 |
| Pitch 3), µrad / arcsec |
±130 / ±27 |
| Yaw 3), µrad / arcsec |
±25 / ±5 |
| Roll, µrad / arcsec |
N/A |
| Maximum Velocity (no load) 4), mm/s |
<150 |
| Maximum Acceleration ((no load) 5), mm/s2 |
Please contact Standa for duty cycle |
| Limits Switches Type (Safety) |
Optical (Optrons) |
| Limit Switch Polarity (Safety) |
Pushed is closed |
| Limit Switch Voltage, V |
5…24 |
| Load, Guiding & Transmission Information |
| Design Type |
Ball Screw Linear Stage (Pitch: 3 mm) |
| Motor Model |
43B |
| Motor Design Type |
Internal Rotor BLDC Motors (3 phase) |
| Maximum Bus Voltage, VDC |
48 |
| Load Capacity (Centrally Placed) 6) |
| Horizontal, kg |
50 |
| Vertical, kg |
20 |
| Moving Mass 7), kg |
2.2 |
| Guiding System |
Recirculating linear rails and carriages units |
| Material & Environment Conditions |
| Housing Material |
Aluminum Alloy |
| Housing Coating (Finish) |
Black Anodizing |
| Environment Pressure |
Normal Atmosphere |
| Operating Temperature, °C |
20±2 |
| Control, Communication and Cabling |
| Recommended Controllers 8) |
ACS Products Line or 8SMC5-USB series |
| Recommended Drivers 8) |
ACS Products Line or 8SMC5-USB series |
| Recommended Power Supply 9) |
Request Standa support |
| Recommended Communication Interface 12) |
EtherCAT / RS232 / USB / TCP-IP |
| Cable Length, m |
0.23
(additional extension cable
can be ordered separately) |
| Differential Outputs 10) |
On request |
| Accessories Information |
| Base Plate for Mechanical Interface |
Not required |
| XY Stack |
Directly |
| Z Configuration |
Available |
| Additional Details |
| Dimensions of Moving Platform (W x L), mm |
170 x 170 |
| Overall Linear Stage Dimensions (W x L x H), mm |
602 x 170 x 70 |
| Measurement System |
Metric / Imperial |
| Orthogonality (XY Configuration) 11), µrad / arcsec |
24 / 5 |
| Protection Level 13) |
From solid particles and spray |
| RoHS |
Compliant |
| Weight, kg |
9 |
