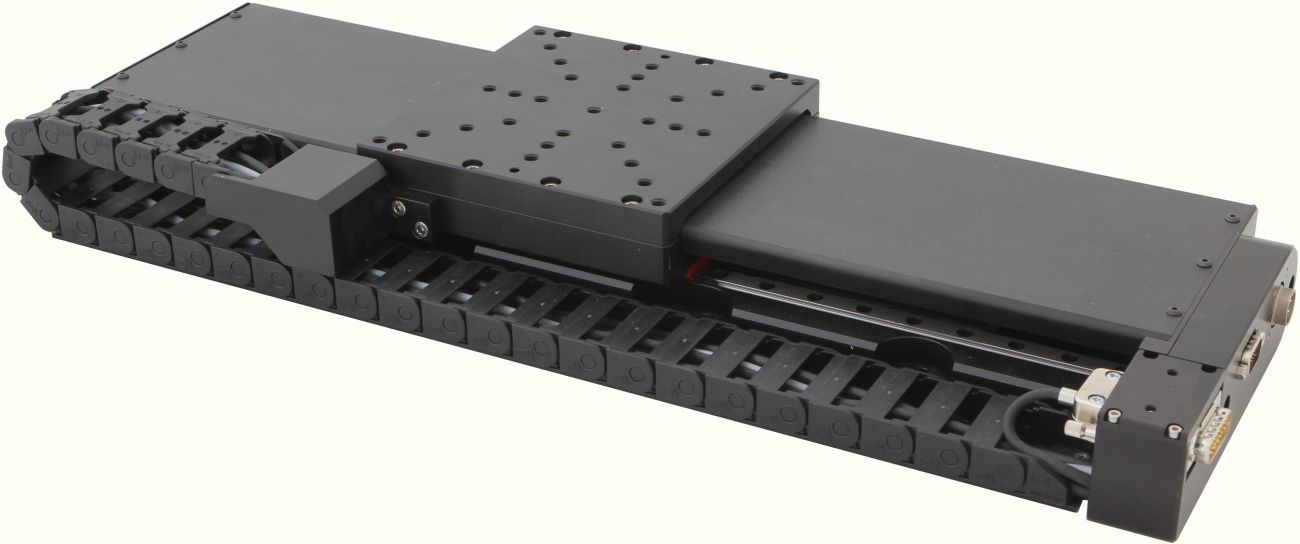

8MTL1401-300 - Direct Drive Linear Translation Stage
Direct Drive Linear Translation Stage
Zoom in
Printable version
View drawings
Download 3D
Ultra precise motion
Direct drive zero backlash system
High resolution non-contact optical incremental encoder
High accuracy linear guide and carriage system
Long life performance guaranteed
Easy integration with metric/imperial opto-mechanical systems
Integrated Cable management for ergonomics
XY configuration has ≤5 arcsec orthogonality
All measurement reports are included by default
Best choice in market for optical delay line application

Motorized Translation Stages of 8MTL series are based on 3 phase ironless linear brushless servo motor technology. Direct drive technology allows users to reach zero backlash motion with high accuracy, repeatability and low friction.

Linear non-contact optical encoder as a feedback system guarantees direct control of position with sub-nanometer resolution of motion.

Naturally aged aluminum alloy guaranties high temperature stability, softness of 8MTL instruments and excellent long period kinematics without drift of guide system. Small footprint of the stage allows to integrate it into very high density machines and tight space applications.

8MTL series translation stages can be prepared for clean room and vacuum (up to 10-3 Torr) applications by request. For higher vacuum please contact Standa support. Special requirements for cleanliness should be requested additionally (Please, indicate that in products request).

Motorized translation stage can be easily connected to standard imperial/metric optical table directly. XY scanning stages can be directly assembled without using any connecting plates. Extreme orthogonality requirements could be additionally requested from Standa support.

Motion control of 8MTL series translation stages is available with Standa or ACS motion Controllers & Drivers.

For light industry applications 8MTL stages can be supplied mounted on standard optical table or extremely flat granite plate.


Kinematics & Feedback information
Travel range300 mm
Encoder TypeOptical Encoder
Encoder ModelLEn1
Encoder Resolutionany of the range:
25 nm to 5 µm
(on demand)
Encoder InterfaceDifferential RS422
Internal MultiplierYES
1) Multiplication Factor4-200
(on demand)
Encoder Grating Period20 µm
Reference Mark (Index)YES
2) Absolute Accuracy
  before calibration±5.00 µm
  after calibration±1 µm
Uni-Directional RepeatabilityN/A
2) Bi-Directional Repeatability
(peak to peak)

±0.15 µm
or better
2) Bi-Directional Repeatability (RMS)±0.08 µm
3) Pitch, µrad / arcsec±30 / ±6.20
3) Yaw, µrad / arcsec±30 / ±6.20
4) Maximum Velocity (load 4kg)<2000 mm/s
5) Maximum Acceleration (load 4kg)<20000 mm/s2
Limits Switches Type (Safety)Optical (Optrons)
Limit Switch Polarity (Safety)Pushed is closed
Limit Switch Voltage5…24 V
Load, Guiding & Transmission Information
Design TypeLinear Motor Stage
Linear Motor ModelLM3
Linear Motor Design TypeIronless BLDC motor
Maximum Bus Voltage>300 VDC
6) Load Capacity (Centrally Placed)30 kg
7) Moving Mass1.2 kg
Guiding SystemRecirculating linear
rails and
carriages units
Material And Environment Conditions
Housing MaterialAluminum Alloy
Housing Coating (Finish)Black Anodizing
Environment pressureNormal Atmosphere
Operating Temperature20±2, °C
Control, Communication and Cabling
8) Recommended controllersACS Products Line
8SMC5-USB series
8) Recommended driversACS Product Line
8SMC5-USB series
9) Recommended power supply2 phase / 3 phase
12) Recommended communication interfaceEtherCAT / RS232 /
Cable Length2 m
(other by request)
10) Differential OutputsOptionally available
by request
Accessories Information
Base Plate for Mechanical InterfaceNot required
XY StackDirectly
Z ConfigurationNot available
(choose from other
Standa stages series)
Additional Details
Dimensions of Moving Platform140 x 140 mm
(W x L)
Stage Dimensions185 x 513 x 55 mm
(W x L x H)
Measurement SystemMetric/Imperial
11) Orthogonality, µrad / arcsec24 / 5
13) Protection LevelBasic
Weight6.75 kg
Ordering Information
Model Description
8MTL1401-300-LEn1-025 Encoder resolution: 25 nm
8MTL1401-300-LEn1-050 Encoder resolution: 50 nm
8MTL1401-300-LEn1-100 Encoder resolution: 100 nm
8MTL1401-300-LEn1-200 Encoder resolution: 200 nm
8MTL1401-300-LEn1 Sin/Cos analog interface

1) With x4 evaluation; system can be delivered with standard analog SIN/COS encoder interface for personal interpolation.

2) Absolute Accuracy & Bi-Directional Repeatability measurements are processed with Zygo ZMI 501 Michelson laser interferometer.

3) Pitch & Yaw measurements are processed with 11D-ALI-COL electronic autocollimator. Resolution of 11D-ALI-COL: 1 µrad. Environment error: 1 µrad.

4) Maximum Velocity is electrically limited by encoder and driver CUT-OF frequency; maximum velocity is also limited by guiding system.

5) Maximum Acceleration is limited by Drivers` Peak Current, Motors` Peak Current and External Load (inertia). Please contact Standa for support.

6) Load Capacity is limited by position of load and integrated guiding system. Please contact Standa support for loading calculation.

7) Moving Mass is constant parameter of system which characterize m0 or inertia of unloaded system.

8) Recommended controllers & Recommended drivers can be optimized for a certain application. Please contact Standa support for recommendation.

9) Recommended power supply depends on required duty cycle and load. Please contact Standa support for recommendation.

10) Differential Outputs are available in passive (buffered) or active (modulated) way with LCMv2.

11) Stages can be assembled with better orthogonality by request.

12) Scalar Control can be implemented with USB/ TCP-IP / RS-232 communication iterface; for vector control we recommend to use EtherCAT.

13) Protection of guiding system is limited and not supposed to be used in wet and dusty environment.
