| Model |
8MTL220-400-LEn1 |
8MTL220-500-LEn1 |
8MTL220-600-LEn1 |
8MTL220-1000-LEn1 |
| Kinematics & Feedback information |
| Travel Range, mm |
400 |
500 |
600 |
1000 |
| Encoder Type |
Optical |
| Encoder Model |
LEN1 |
| Encoder Resolution |
≥25 nm (if interpolator is integrated ) or <1nm (if interpolated by driver) |
| Encoder Interface |
Differential RS422 or Analog Sin/Cos |
| Internal Multiplier |
YES |
| Multiplication factor 1) |
up to x200 (if interpolator is integrated ); up tp x65536 (if interpolated by driver) |
| Encoder Grating Period, µm |
20 |
| Reference Mark (Index) |
YES (in the center of travel range) |
| Absolute Accuracy 2) |
| Before Calibration, µm |
±10 |
±11 |
±12 |
±16 |
| After Calibration, µm |
±1 |
| Uni-Directional Repeatability, µm |
N/A |
| Bi-Directional Repeatability (peak to peak) 2), µm |
±0.5 |
| Bi-Directional Repeatability (RMS) 2), µm |
±0.26 |
| Pitch 3), µrad / arcsec |
±30 / ±6.20 |
±55 / ±11.34 |
| Yaw 3), µrad / arcsec |
±30 / ±6.20 |
±55 / ±11.34 |
| Roll, µrad / arcsec |
±30 / ±6.20 |
±55 / ±11.34 |
| Maximum Velocity (with load 4kg) 4), mm/s |
<2000 |
| Maximum Acceleration (with load 4kg) 5), mm/s2 |
<20000 |
| Limits Switches Type (Safety) |
Optical (Optrons) |
| Limit Switch Polarity (Safety) |
Pushed is closed |
| Limit Switch Voltage, V |
5…24 |
| Load, Guiding & Transmission Information |
| Design Type |

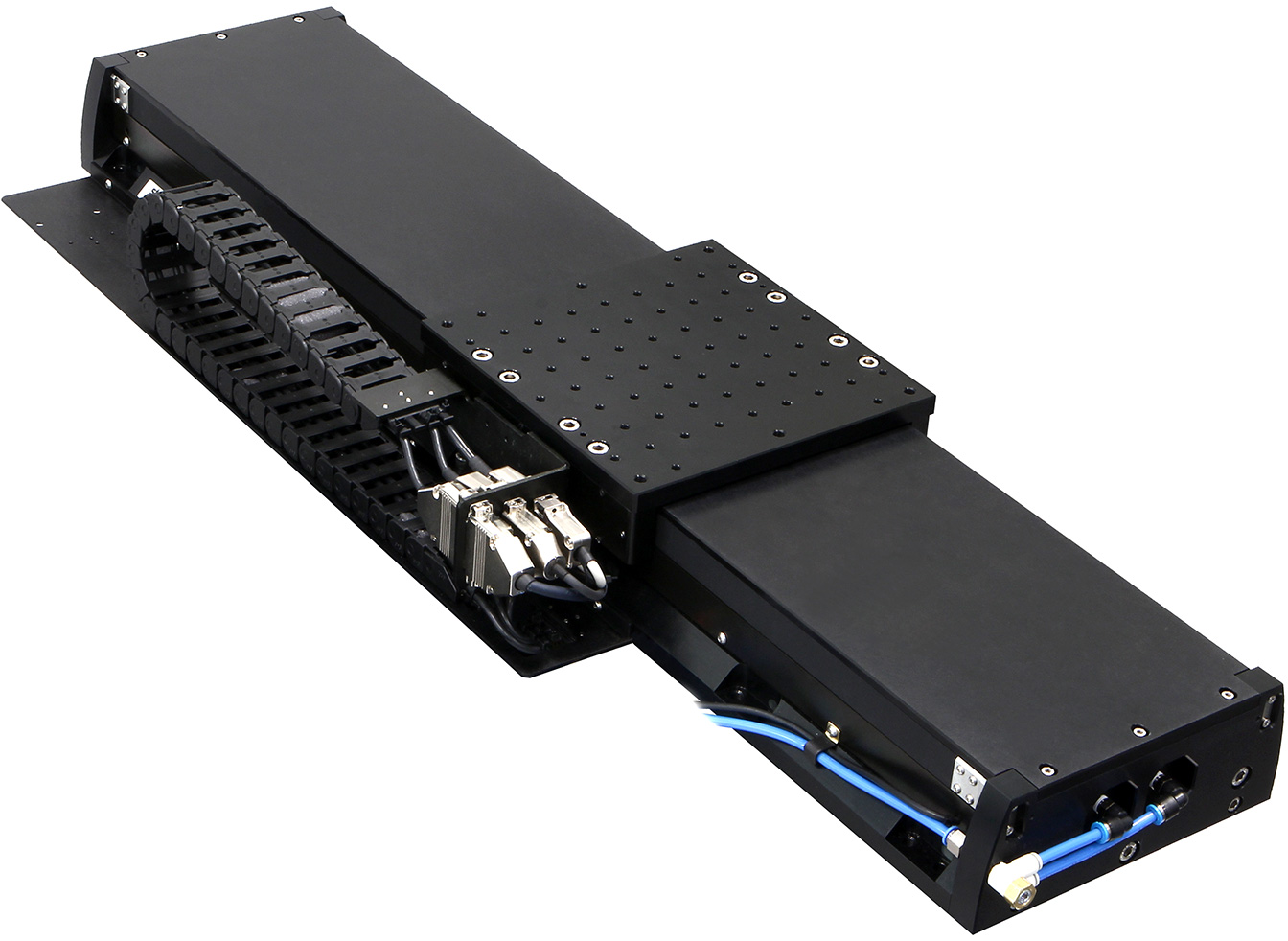

Linear Motor Stage |
| Linear Motor Model |
LM4 |
| Linear Motor Design Type |
Ironless BLDC motor |
| Maximum Bus Voltage, VDC |
320 |
| Load Capacity (Centrally Placed) 6) |
| Horizontal, kg |
≤100 |
| Vertical, kg |
N/A |
| Moving Mass 7), kg |
9.5 |
| Guiding System |
Recirculating linear rails and
carriages units with caged balls |
| Material & Environment Conditions |
| Housing Material |
Aluminum Alloy |
| Housing Coating (Finish) |
Black Anodizing |
| Environment Pressure |
Normal Atmosphere |
| Operating Temperature, °C |
20±2 |
| Control, Communication and Cabling |
| Recommended Controllers 8) |
ACS Products Line or 8SMC5-USB series |
| Recommended Drivers 8) |
ACS Products Line or 8SMC5-USB series |
| Recommended Power Supply 9) |
1 phase / 3 phase source |
| Recommended Communication Interface 12) |
EtherCAT / RS232 / USB / TCP-IP |
| Cable Length, m |
2 (customized cable length could be requested (optionally)) |
| Differential Outputs 10) |
On request |
| Accessories Information |
| Base Plate for Mechanical Interface |
Not required |
| XY Stack |
Directly |
| Z Configuration |
Not available
(choose from other Standa stages series) |
| Additional Details |
| Dimensions of Moving Platform (L x W), mm |
225 x 225 |
| Overall Linear Stage Dimensions (L x W x H), mm |
780 x 297.5 x 100 |
880 x 297.5 x 100 |
980 x 297.5 x 100 |
1317 x 297.5 x 100 |
| Measurement System |
Metric / Imperial |
| Orthogonality (XY Configuration) 11), µrad / arcsec |
24 / 5 |
| Protection Level |
From solid particles and spray |
| RoHS |
Compliant |
| Weight, kg |
37 |
41.5 |
46 |
64 |
